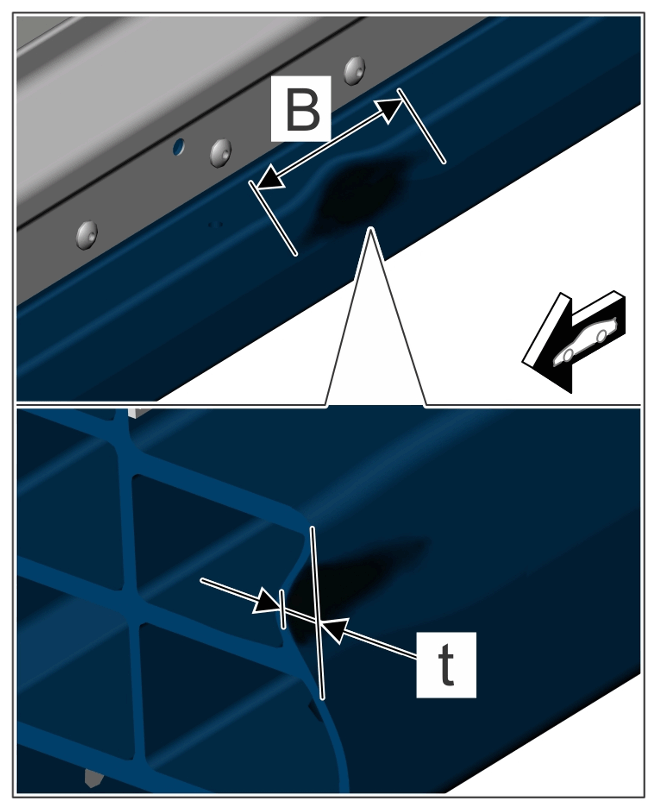

| Maximum damage width - deformation |
Item B |
Length |
90 mm |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Damage width |
|
|
|
|
| Maximum damage depth |
Item t |
Length |
10 mm |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Damage depth |
|
|
|
|

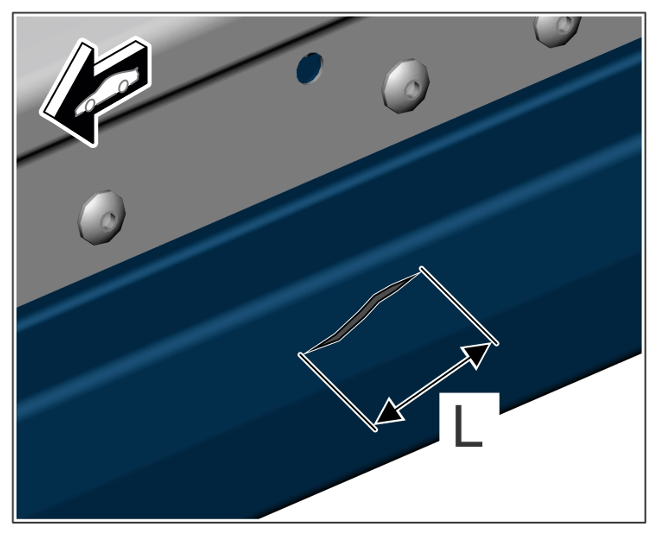

| Maximum crack length |
Item L |
Length |
20 mm |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Crack length |
|
|
|
|

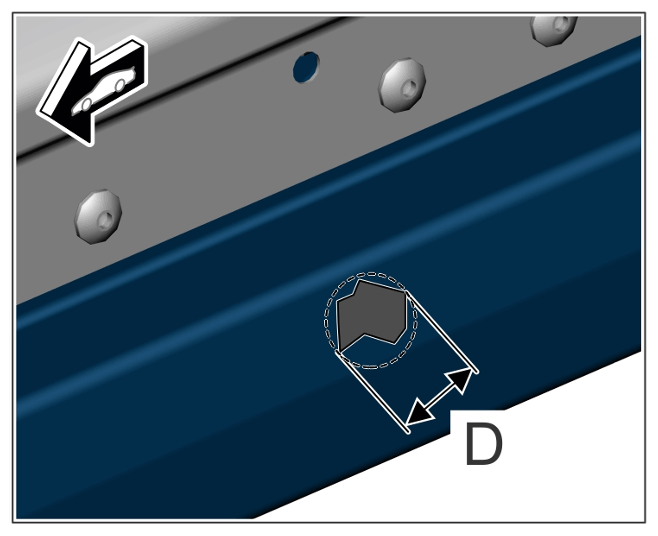

| Maximum hole diameter |
Item D |
Diamete |
r 10 mm |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Hole diameter |
|
|
|
|
