Rear Cover

Location	Description	Type	Basic value	Tolerance

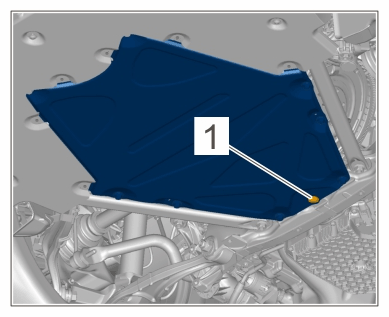

Rear cover	Item 1	Tightening torque	3 (2 ft.lb) N m	+ 10 % - 15 %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

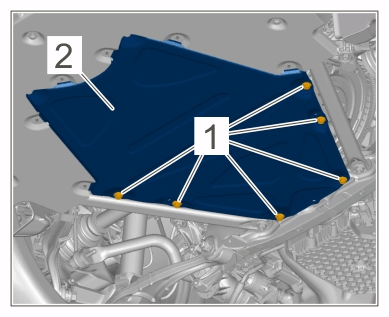

Rear cover	Item 1	Tightening torque	3 (2 ft.lb) N m	+ 10 % - 15 %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

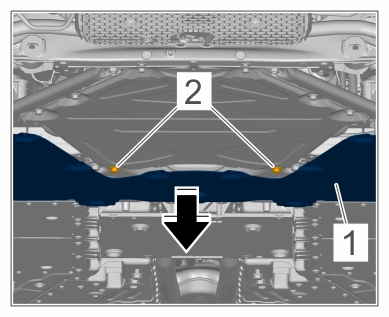

Rear cover	Item 2	Tightening torque	30 (22 ft.lb) N m
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

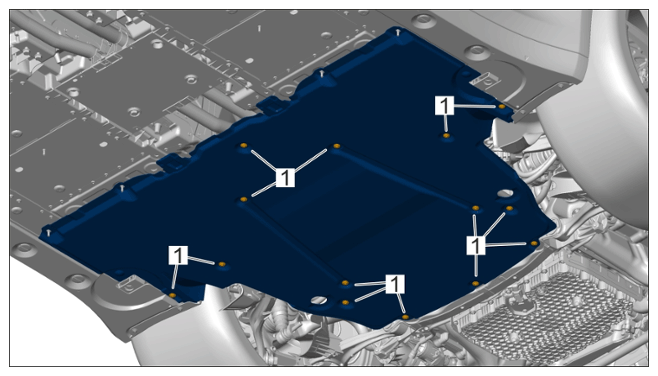

Rear cover	Item 1	Tightening torque	30 (22 ft.lb) N m
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear cover

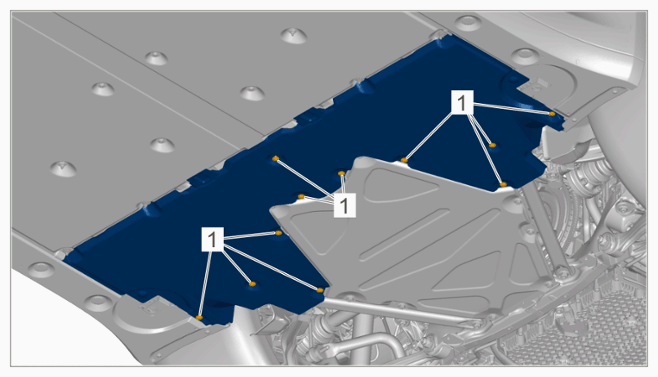

Rear cover	Item 1	Tightening torque	3 (2 ft.lb) N m
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw

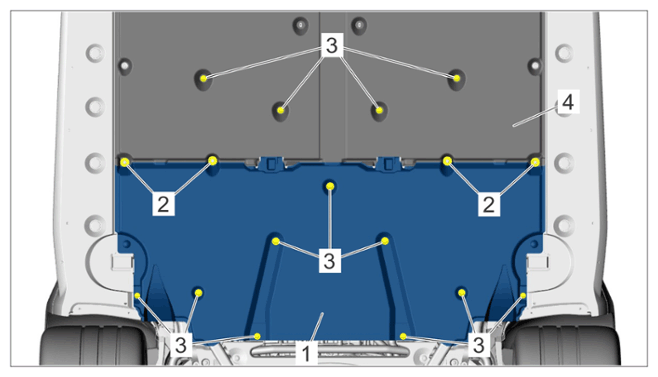

Nut for rear cover	Item 2	Tightening torque	2.5 (2 ft.lb) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear cover
Screws for rear cover	Item 3	Tightening torque	3 (2 ft.lb) N m
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear cover
