Front Cover

Location	Description	Type	Basic value	Tolerance

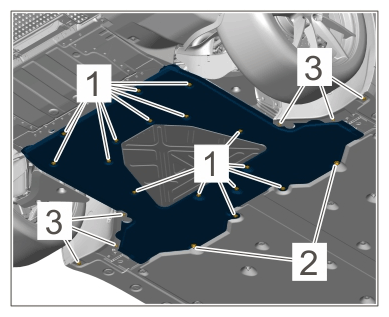

Front cover	Item 1	Tightening torque	3 (2 ft.lb) Nm	+ 10 % - 15 %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws and nuts
Front cover	Item 2	Tightening torque	2.5 (1.75 ft.lb) Nm	+ 10 % - 15 %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws and nuts

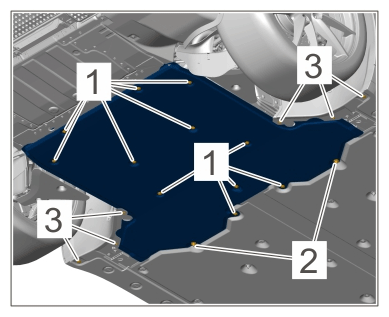

Front cover (Cabriolet)	Item 1	Tightening torque	3 (2 ft.lb) Nm	+ 10 % - 15 %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws and nuts
Front cover (Cabriolet)	Item 2	Tightening torque	2.5 (1.75 ft.lb) Nm	+ 10 % - 15 %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws and nuts

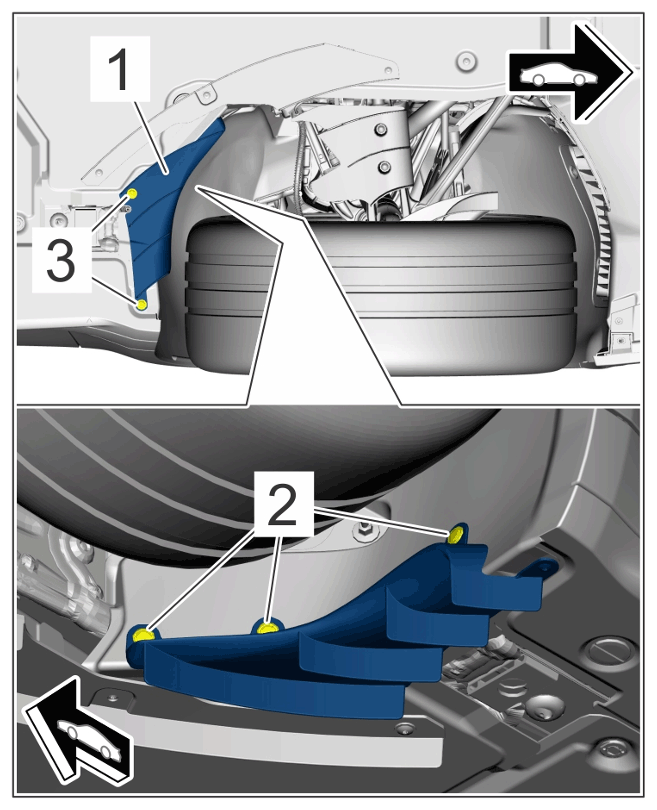

Screws for front cover (outer fin)	Item 3	Tightening torque	2 (1.5 ft.lb) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front cover (outer fins)

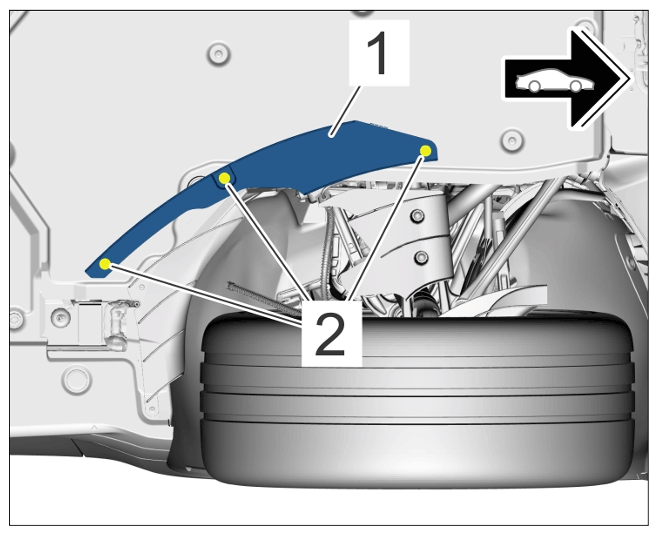

Screws for front cover (inner fin)	Item 2	Tightening torque	2 (1.5 ft.lb) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front cover (inner fins)
