5X - Body General - 911 CARRERA (992)
>>
WM, 5X00IN40 Technical Values
>>
51 - Body Centre, Roof, Frame
>>
Floorpan
51 - Body Centre, Roof, Frame: Floorpan
Location
Description
Type
Basic value
Tolerance
Rear tunnel reinforcement to floorpan
Item 2
Tightening torque
40 (30 ft.lb) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

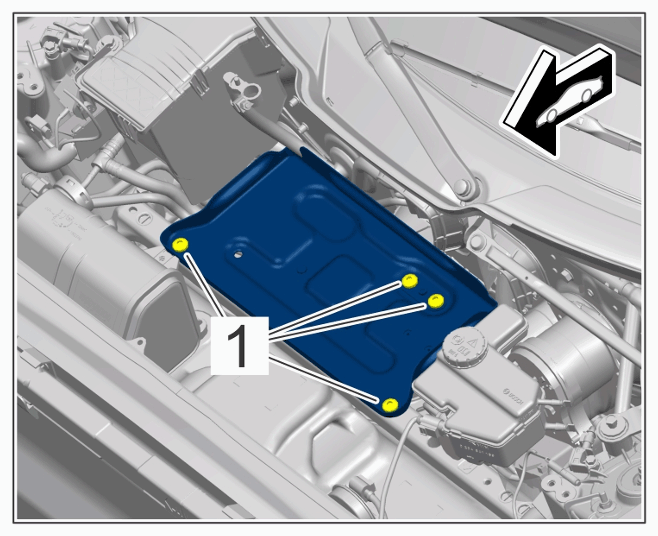

Crash reinforcement in rear tunnel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
