WM, 5X00IN40 Technical Values
>>
51 - Body Centre, Roof, Frame
>>
Bonding Areas On Roof
Bonding Areas On Roof
Location
Description
Type
Basic value
Tolerance

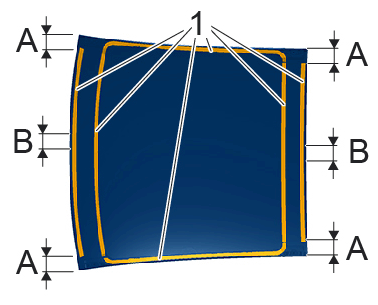

Area A
Length
50 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Bonding surfaces
Area B
Length
30 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Bonding surfaces
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
