Front Wing

Location	Description	Type	Basic value

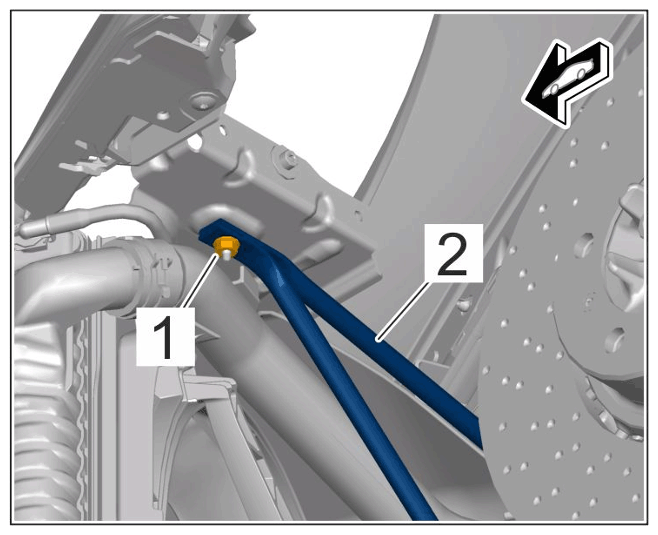

Nut securing strut to front wing	Item 1	Tightening torque	8 (6 ft.lb) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Inner fastening nut

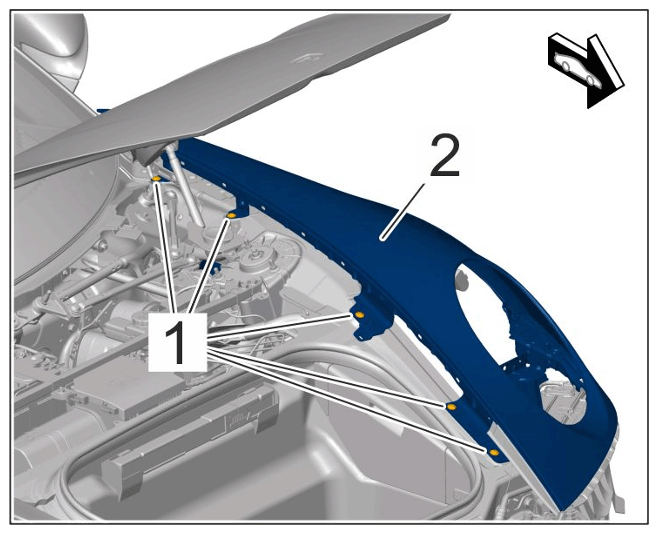

Screws on wing, top	Item 1	Tightening torque	8 (6 ft.lb) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing screws, top

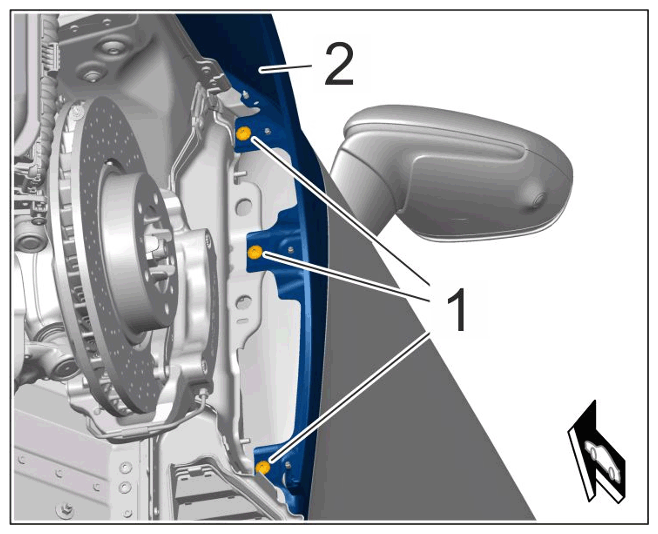

Screws on wing, rear	Item 1	Tightening torque	8 (6 ft.lb) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing screws, rear

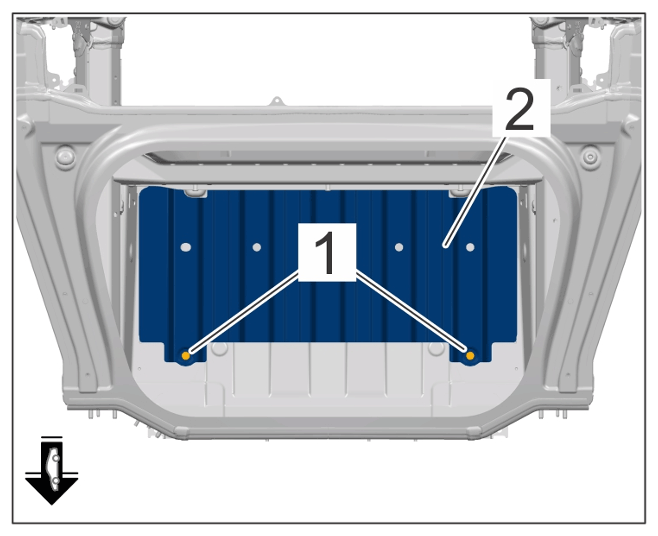

Nut for the securing rail for the wing joining plate	Item 2	Tightening torque	8 Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing joining plate
