Front Wheel Housing Liner (Front Section)

Location	Description	Type	Basic value	Tolerance

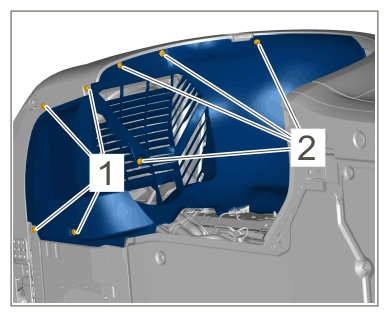

Front wheel housing liner (front section)	Item 1	Tightening torque	2 (1.5 ft.lb) Nm	+ 10 % - 15%
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

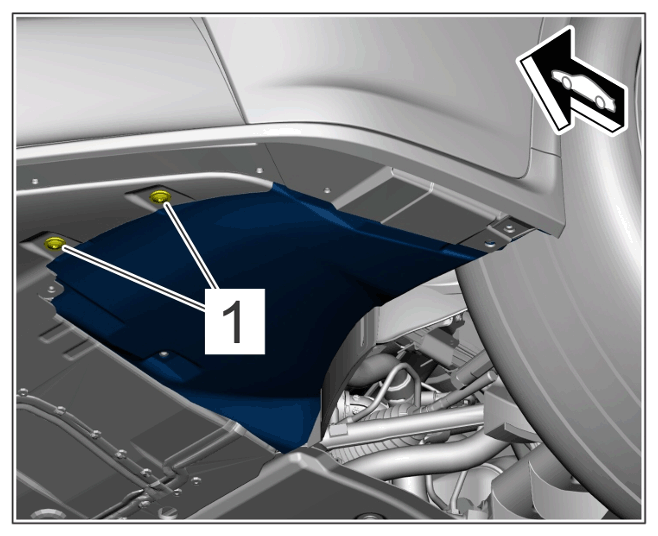

Front wheel housing liner (front section)	Item 1	Tightening torque	3.2 (2.1 ft.lb) Nr	n +10% - 15%
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

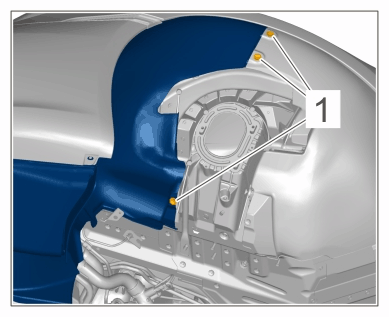

Front wheel housing liner (front section)	Item 2	Tightening torque	2 (1.5 ft.lb) Nm	+ 10 % - 15%
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Front wheel housing liner (front section)	Item 1	Tightening torque	3.2 (2.1 ft.lb) Nr	n +10% - 15%
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw
Front screws (front section) GT3	Item 1	Tightening torque	3.2 (2.4 ft.lb) Nr	n
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

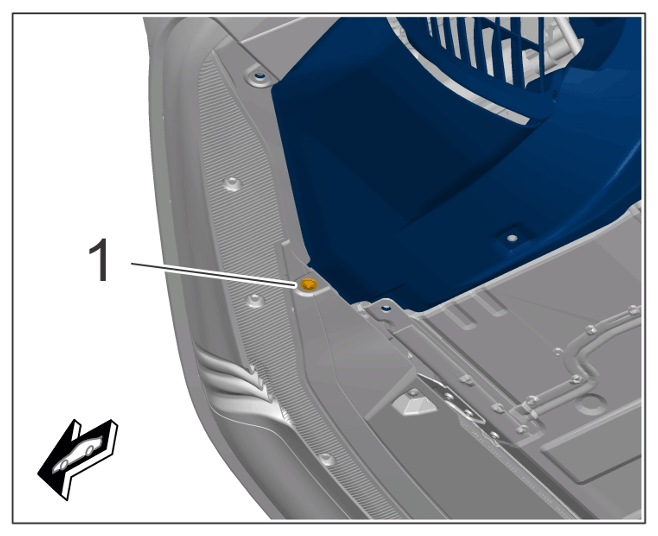

Screws for front wheel housing liner (separation edge)	Item 1	Tightening torque	2 (1.5 ft.lb) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
