WM, 5X00IN21 Working With Body Structural Adhesive Pah.071.781.00: Notes
TOOLS DESCRIPTION
| Tool denomination | Type | Tool number | Image |
|---|---|---|---|

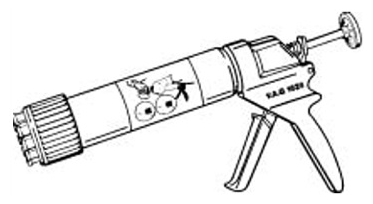

| hand-cartridge gun | Vehicle-specific workshop equipment | > VAG 1628 | |
| pneumatic gun | General workshop equipment | > VAS 6648 | |
| pneumatic cartridge gun | General workshop equipment | > V.A.G 1761/1 |
TECHNICAL VALUES SPECIFICATION
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Minimum processing temperature | PAH.071.781.00 | Minimum temperature | 15°C | ||
| Maximum processing temperature | PAH.071.781.00 | Maximum temperature | 35°C | ||
| Structural bonding | PAH.071.781.00 | Processing time at 15°C | 80 min | ||
| Structural bonding | PAH.071.781.00 | Processing time at 18°C | 75 min | ||
| Structural bonding | PAH.071.781.00 | Processing time at 20°C | 65 min | ||
| Structural bonding | PAH.071.781.00 | Processing time at 23°C | 60 min | ||
| Structural bonding | PAH.071.781.00 | Processing time at 25°C | 50 min | ||
| Structural bonding | PAH.071.781.00 | Processing time at 30°C | 40 min | ||
| Structural bonding | PAH.071.781.00 | Processing time at 35 °C | 30 min | ||
| Applying adhesive | Spread out evenly | Application depth | 0.5 mm | ||
| Maximum layer thickness | Layer thickness | 1 mm | |||
| Minimum hardening temperature | PAH.071.781.00 | Minimum temperature | 18°C | ||
| Maximum hardening temperature | PAH.071.781.00 | Maximum temperature | 80°C | ||
| Assembly strength | PAH.071.781.00 | Hardening time at 23 °C |
12 h | ||
| Assembly strength | PAH.071.781.00 | Hardening time at 60 °C |
60 min | ||
| Endurance strength | PAH.071.781.00 | Standing time at 18°C | 96 h |
