WM, 559119 Removing And Installing Rear Lid Hinge
>>
Technical Values
Technical Values
Location
Description
Type
Basic value
Tolerance 1
Tolerance 2
Rear lid hinge
Item 1
Tightening torque
9 Nm (6.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

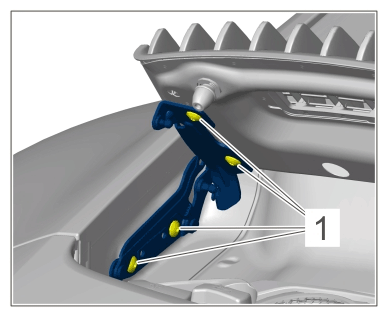

Screws on rear lid hinge
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
