Removing Rear Lid Hinge

Information

• If the rear lid hinge fails to work properly, it can be replaced without having to remove the rear lid. In such cases, a second person is required to hold the lid open during the repair process.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

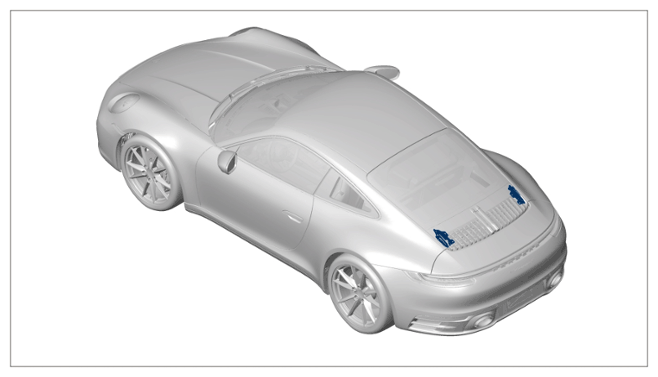

Installation position

1. Remove pneumatic spring.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

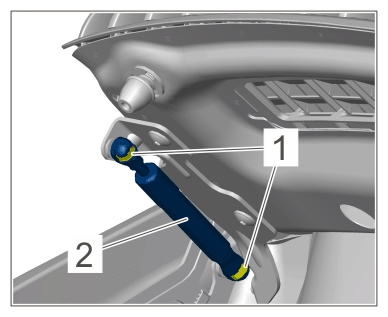

   Pneumatic spring

   1. 1.1  Unclip clips -1-  .
   2. 1.2  Remove pneumatic spring -2-  .
2. Unscrew screws -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

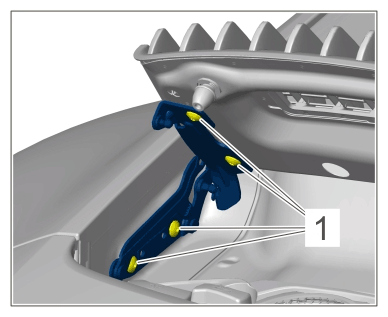

   Screws on rear lid hinge

3. Remove rear lid hinge.
