Removing Rear Panel

Information

Some of the repair illustrations show only one side of the vehicle. Naturally, some steps also have to be performed on the opposite side of the vehicle as well. These must be carried out as a mirror image of the steps shown.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

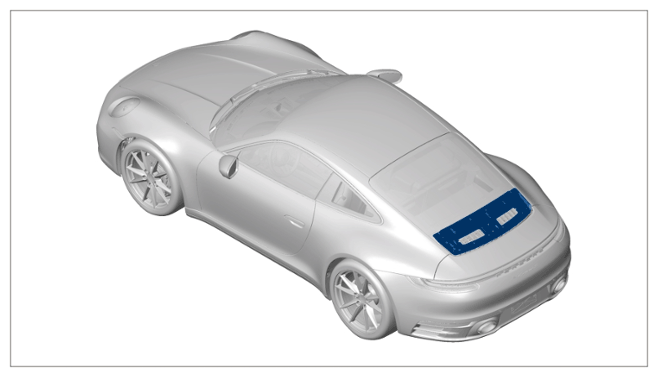

Installation position

1. Guide out wiring harness.
2. Unscrew screws -1-  and remove rear lid -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

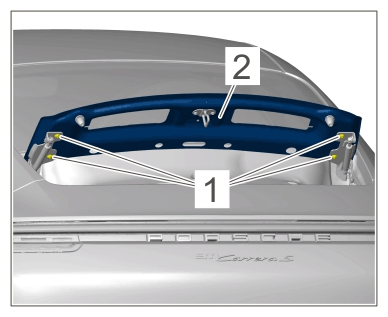

   Screws on rear cover
