55 Lids, Flaps -- 992 - 911 CARRERA (992)
>>
5586 Rear Lock, Lower Part
>>
WM, 558619 Removing And Installing Lower Part Of Rear Lid Lock
>>
Technical Values
Technical Values
Location
Description
Type
Basic value
Tolerance 1
Tolerance 2

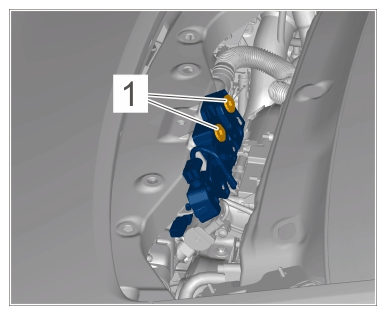

Lower part of rear lid lock
Item 1
Tightening torque
9.7 Nm (7.2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
