Removing Rear Lid Lock

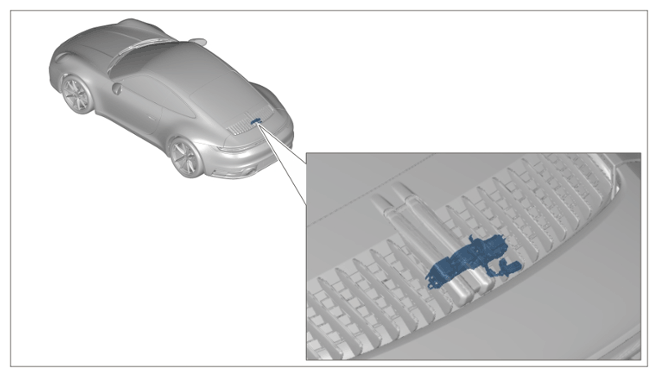

G15532898Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position

  1. Release and unplug electric plug connections -1-  .

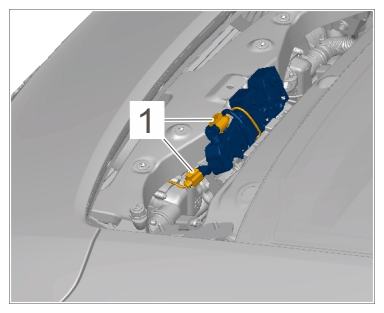

    G15532899Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections

  2. Unscrew screws -1-  .

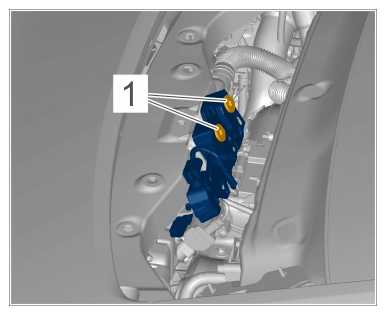

    G15532900Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

  3. Remove rear lid lock.
