Removing Switching Element For Filler Flap

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

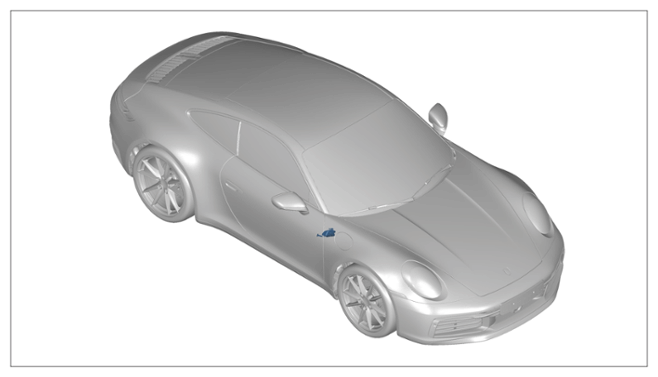

Installation position

1. Disengage filler flap emergency release -1-  from the trim -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

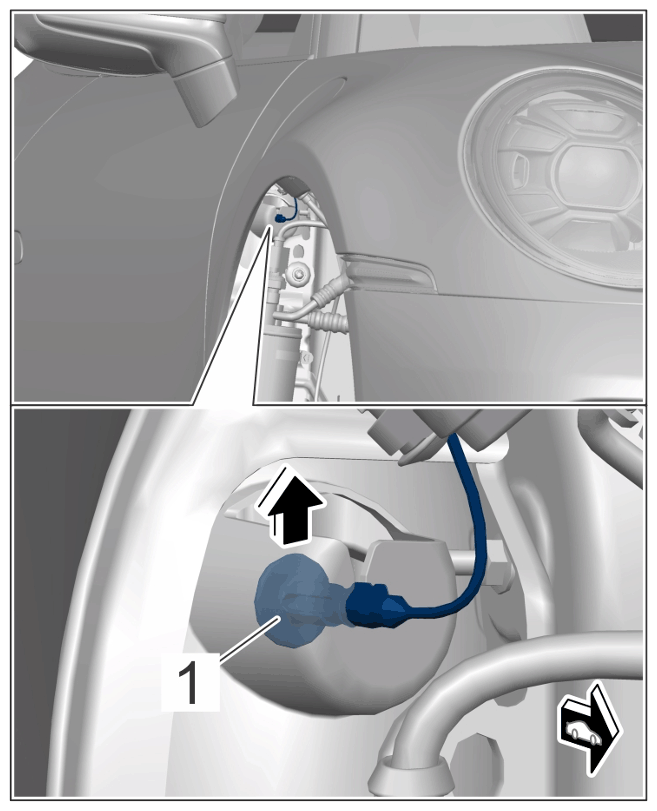

   Emergency release

2. Release and unplug electric plug connection -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

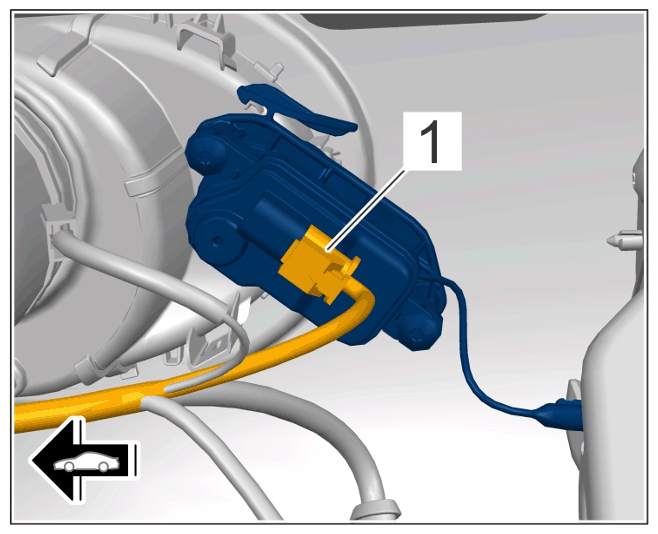

   Electric plug connection

3. Release filler flap switching element -1-  (-arrow A-  ) and detach it by turning it 90° clockwise -arrow B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

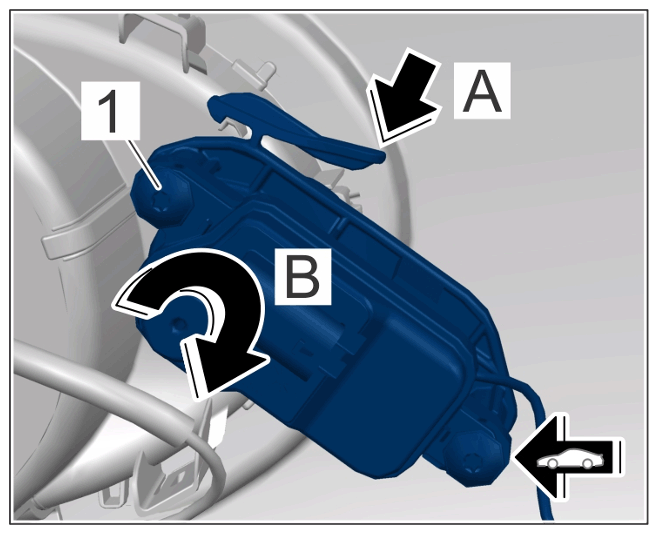

   Filler flap switching element

4. Remove filler flap switching element.
