Removing Filler Flap

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

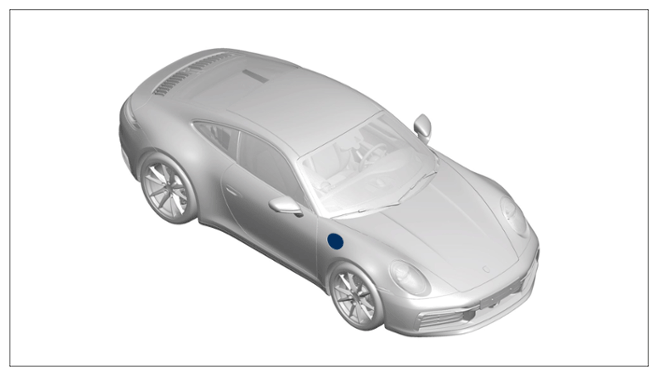

Installation position

1. Unscrew and remove cap.

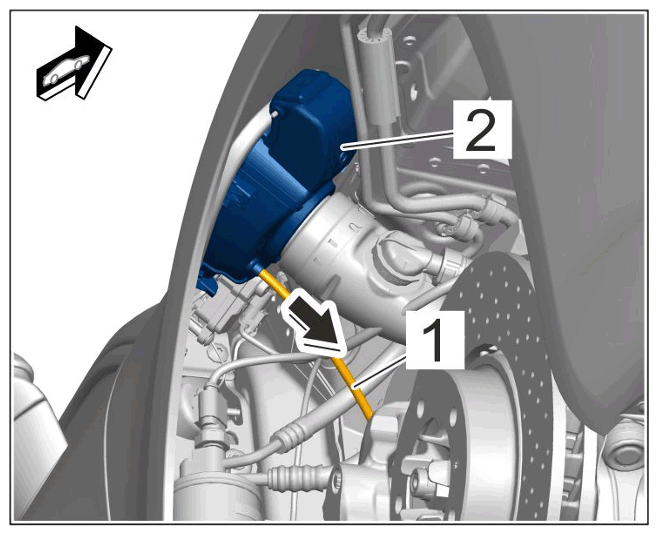

2. Pull drain hose -1-  off the filler flap -2-  (-arrow-  ).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Drain hose

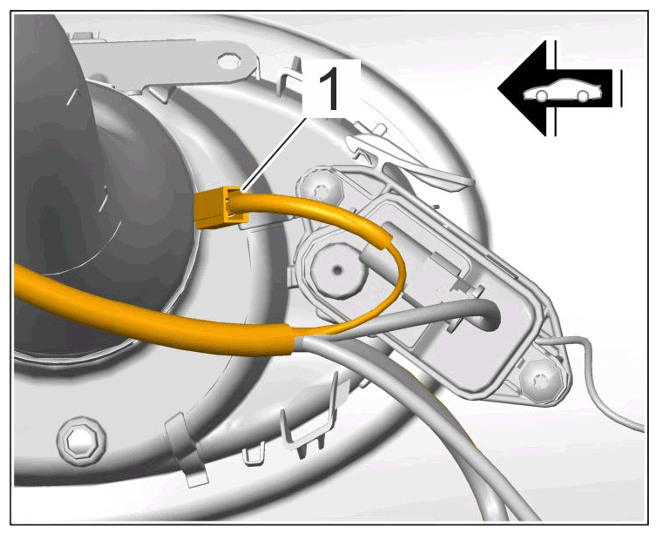

3. Disconnect ground cable -1-  from the filler flap.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Ground cable

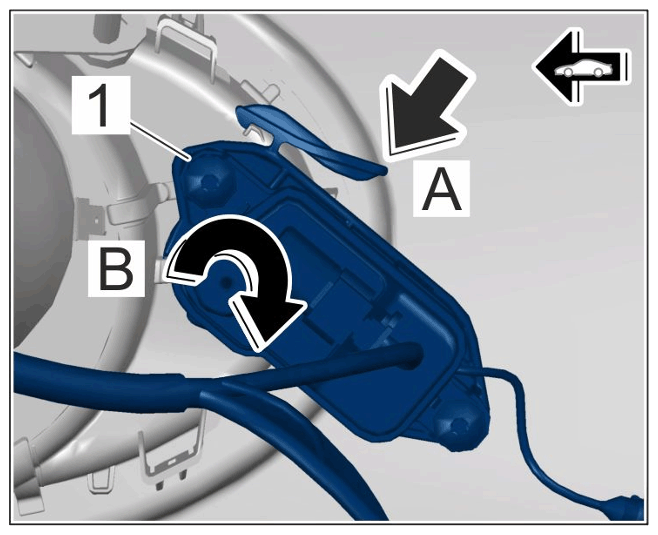

4. Release filler flap switching element -arrow A-  and detach it by turning it 90° clockwise -arrow B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Filler flap switching element

5. Remove filler flap switching element and set it aside with electric line connected.

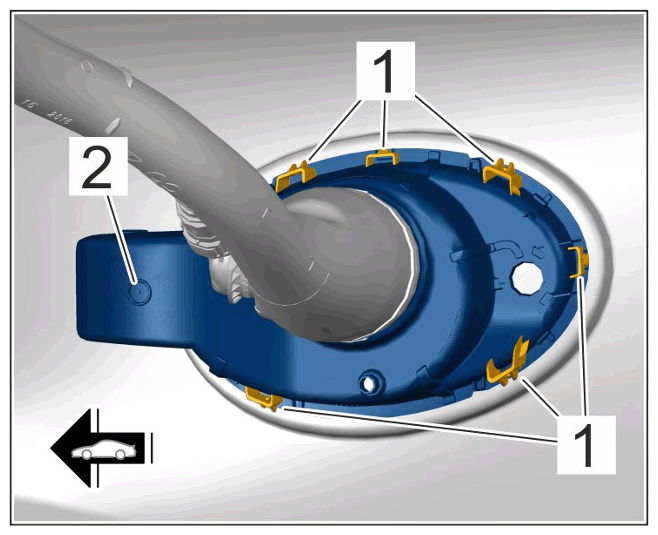

6. Unclip locking lugs -1-  on filler flap -2-  on the inside.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Locking lugs

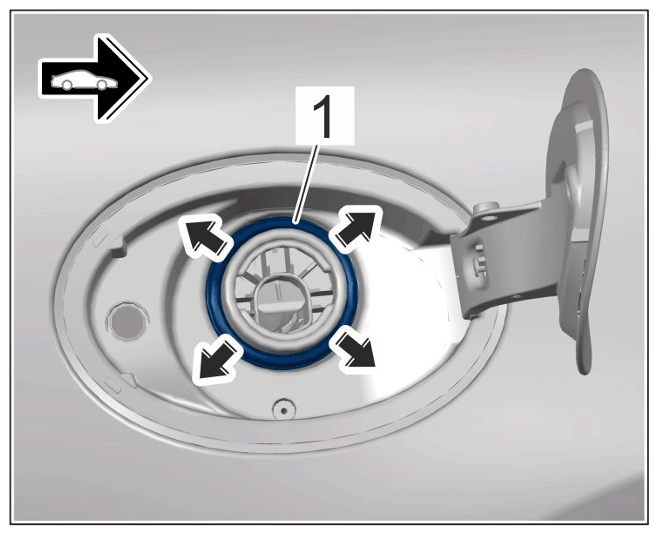

7. Carefully push rubber sleeve outwards over the connection piece -Arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rubber sleeve

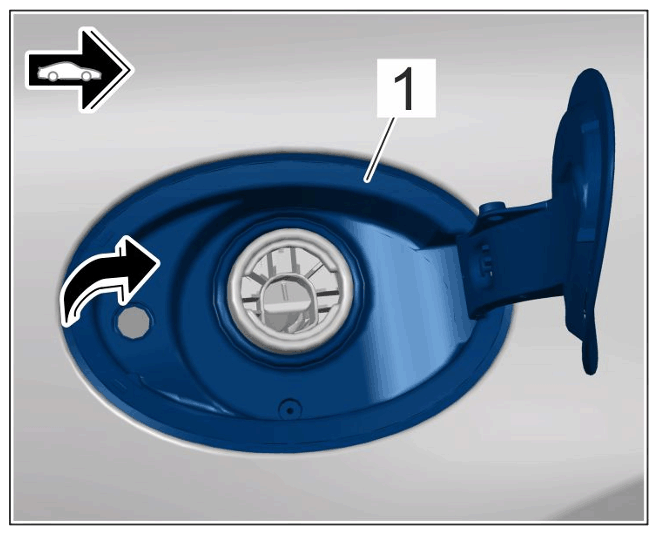

8. Swivel the filler flap -1-  out of the body aperture -arrow-  and remove it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Filler flap
