Removing Filler Flap Cover

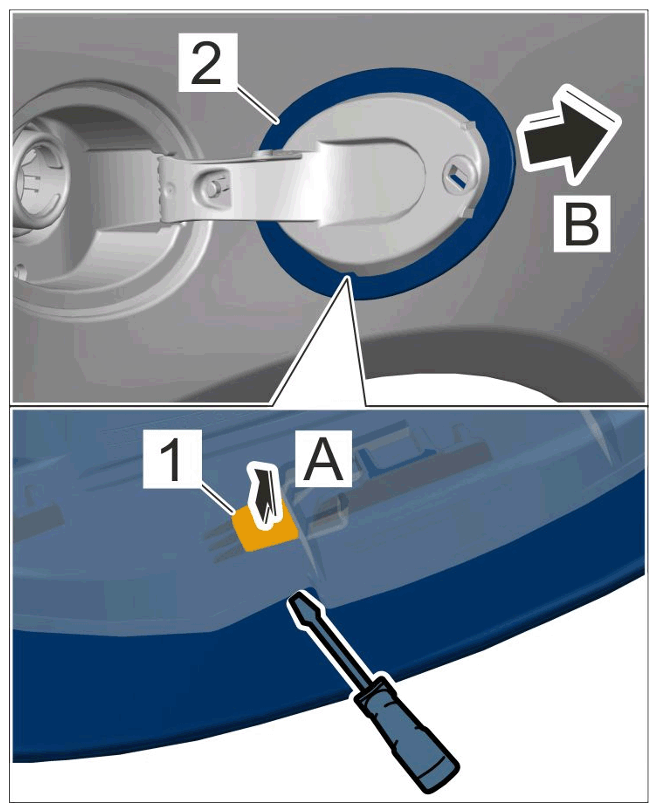

  1. Carefully release retaining lug -1-  using a screwdriver -arrow A-  and remove filler flap cover -2-  by pulling it outwards -arrow B-  .
    G15532881Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Filler flap cover
