Installing Filler Flap Cover

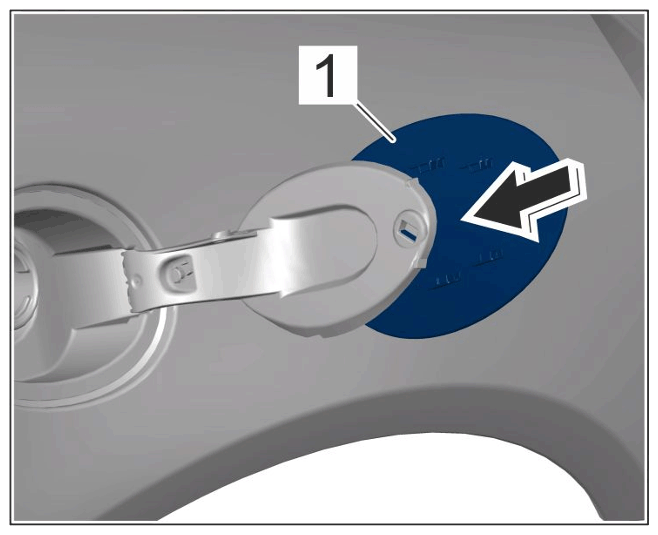

  1. Position filler flap cover -1-  on filler flap guide and push it on -arrow-  until the locking lugs lock securely.
    G15532882Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Filler flap cover

  1. Installation is performed in reverse order.
