Home >> Porsche >> 2021 >> 911 Targa 4 >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> 55 Lids, Flaps -- 992 - 911 CARRERA (992) >> 5533 Front Lid Seal >> WM, 553319 Removing And Installing Front Lid Seal >> Removing Front Lid Seal

Removing Front Lid Seal

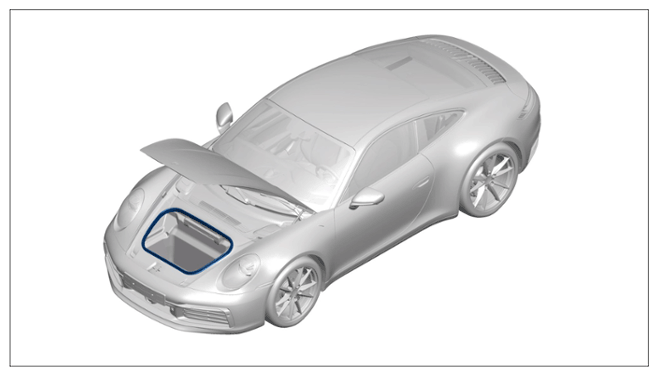

G15532872Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position

  1. Open the front lid.
  2. Carefully remove front lid seal by pulling it inwards -Arrows-  .

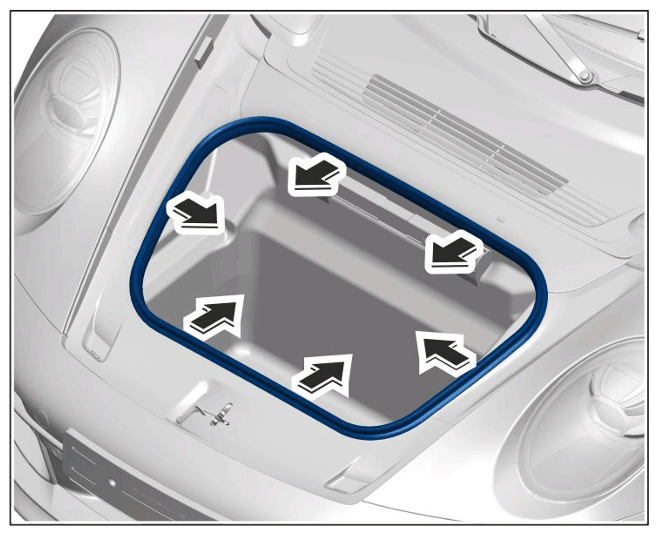

    G15532873Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Font lid seal
