Removing Front Pneumatic Spring

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

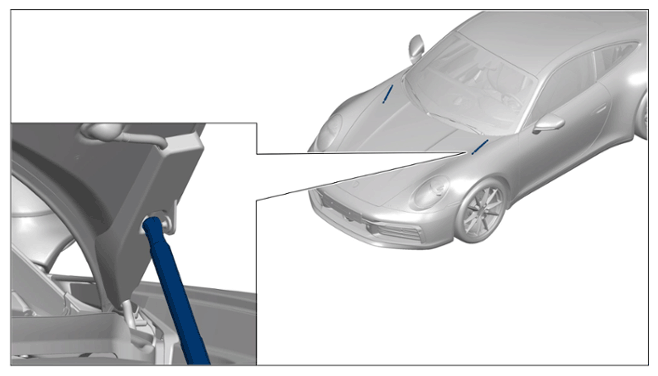

Installation position

CAUTION: Incorrect handling of gas-filled shock absorbers

Gas-filled shock absorbers can burst
Risk of eye injuries
Risk of bruising
- Gas-filled shock absorbers must be in idle state before removal.
- Open the lid.
- Secure the lid to prevent it from closing accidentally following removal of the gas-filled shock absorbers.
- Do not use force to open the gas-filled shock absorbers because of their high internal pressure.

Information

The help of a second person is required for the following steps.

Opening the front lid
Information

The safety clip loses its preload if removed.
Pull pneumatic spring at the lid side off the ball joint.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pneumatic spring for lid

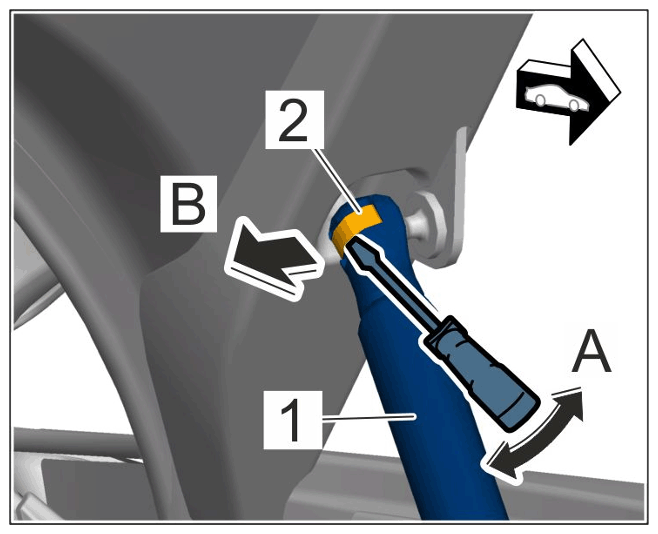

1. 2.1 Guide a screwdriver in between the pneumatic spring -1- at the top and the safety clip -2- .
2. 2.2 Loosen the safety clip -2- by levering the screwdriver -arrow A- (-arrow B- ) in such a way that the safety clip remains in the head of the pneumatic spring.
3. 2.3 Pull pneumatic spring off the ball joint.
Information

The safety clip loses its preload if removed.
Pull pneumatic spring on the body side off the ball joint.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pneumatic spring head on body

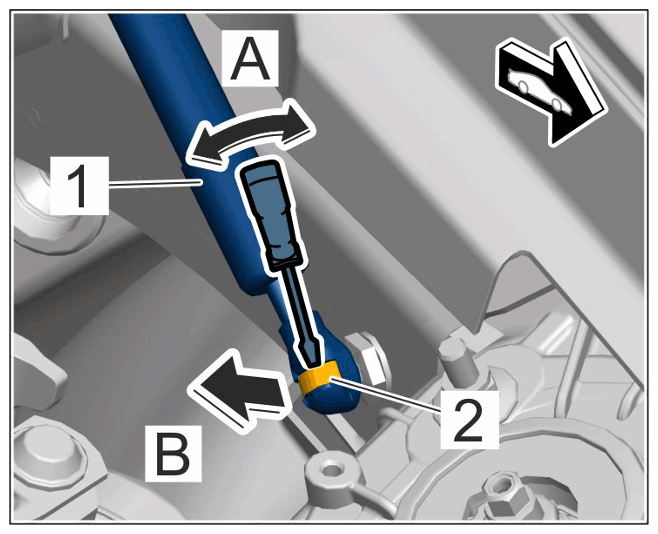

1. 3.1 Guide a screwdriver in between the pneumatic spring -1- at the bottom and the safety clip -2- .
2. 3.2 Loosen the safety clip -2- by levering the screwdriver -arrow A- (-arrow B- ) in such a way that the safety clip remains in the head of the pneumatic spring.
3. 3.3 Pull pneumatic spring off the ball joint.
