Installing Front Lid Hinge

Check whether corrosion protection films -1- are affixed on the underside of the front lid hinge.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

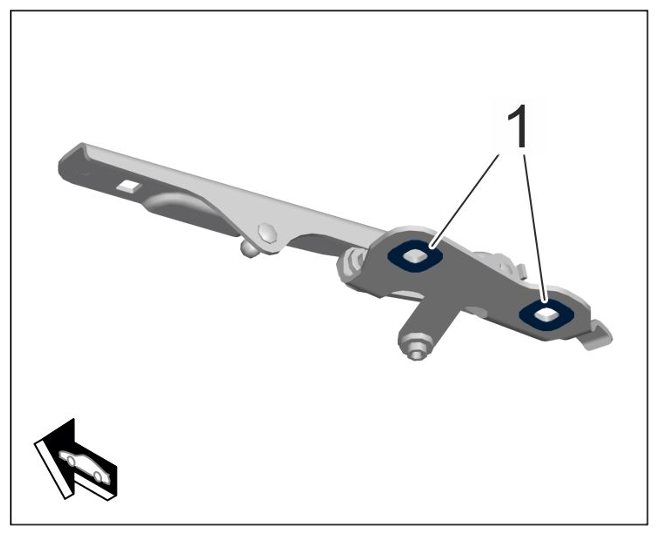

Corrosion protection films on front lid hinge
Align front lid hinge according to the markings made earlier.
Screw in screws -1- and tighten to > Tightening torque 10 Nm (7.4 ftlb.) .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

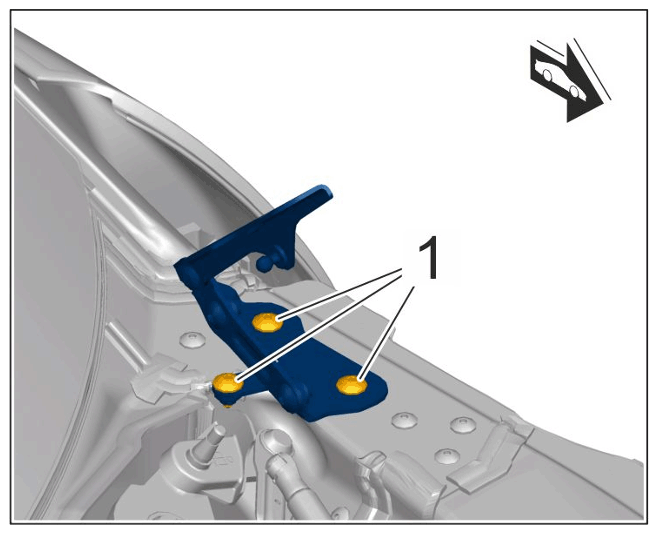

Screws on front lid hinge
