55 Lids, Flaps -- 992 - 911 CARRERA (992)
>>
5522 Front Lid
>>
WM, 552219 Removing And Installing Front Lid
>>
Technical Values
Technical Values
Location
Description
Type
Basic value
Tolerance 1
Tolerance 2
Nuts on lid hinge front
Item 1
Torque
10 Nm (7.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

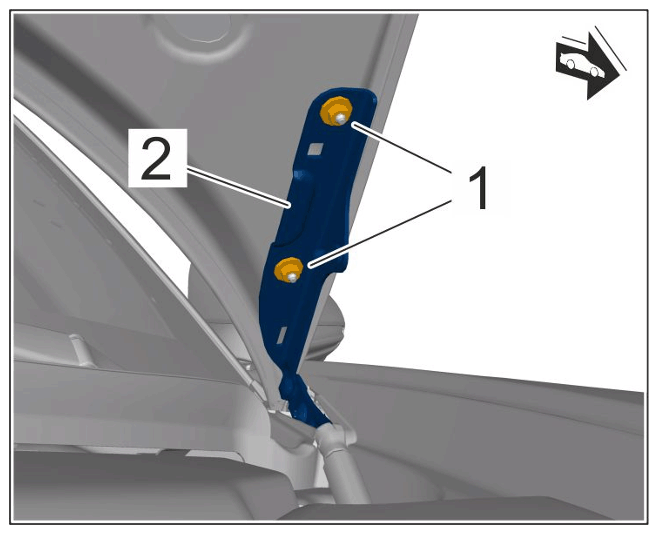

Nuts on lid hinge front
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
