Removing Front Lid

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

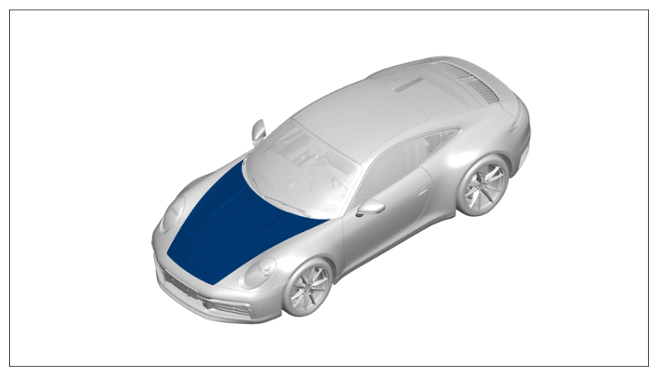

Installation position

1. Position container for catching emerging washer fluid under the area near the hose locking mechanism for the washer fluid line.
2. Unclip spray nozzles -1-  (-Arrows-  ).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

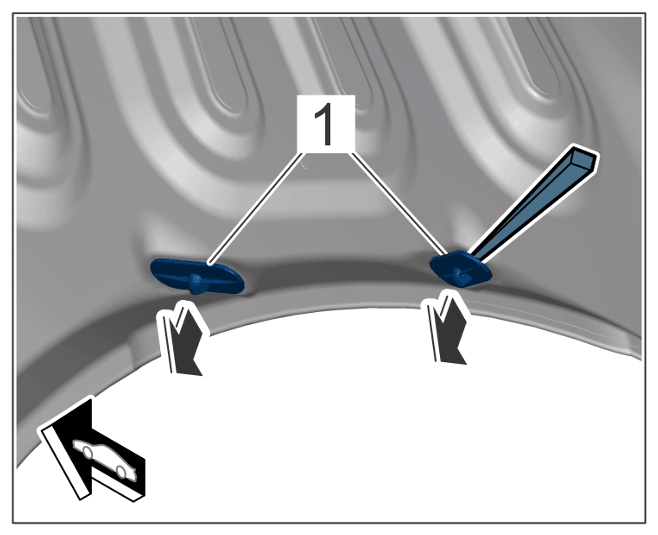

   Spray nozzles

3. Push out the clamp -1-  on the hose locking mechanism using a screwdriver -arrow A-  and disconnect washer fluid hose -arrow B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

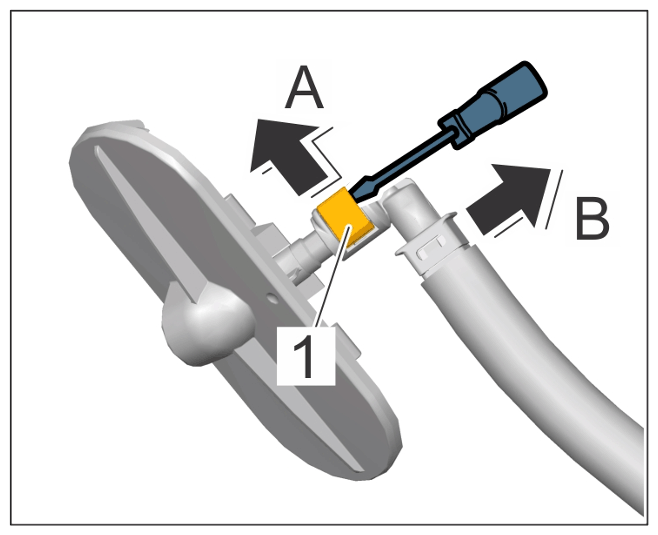

   Hose locking mechanism

4. Unclip cover on hinge -1-  using a plastic wedge and remove it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

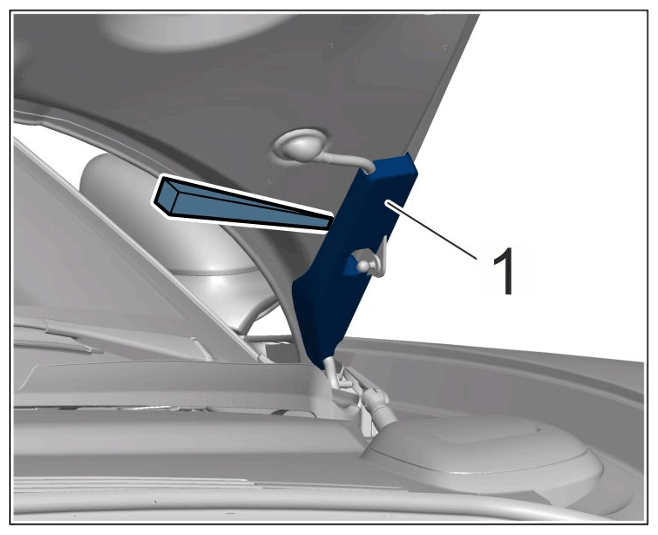

   Cover on hinge

5. Pull grommet for washer fluid line -1-  out of the lid -arrow-  and pull the line completely out of the front lid.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

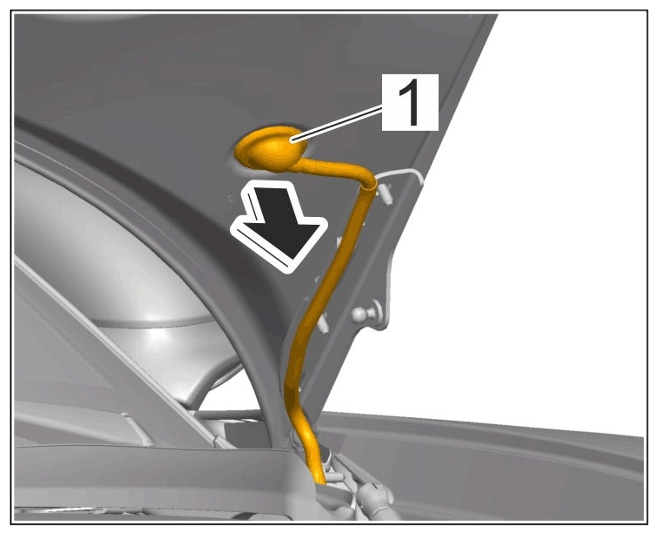

   Grommet for washer fluid line

   Information

   The help of a second person is required for the following steps.

6. Unscrew nuts on front lid hinge.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

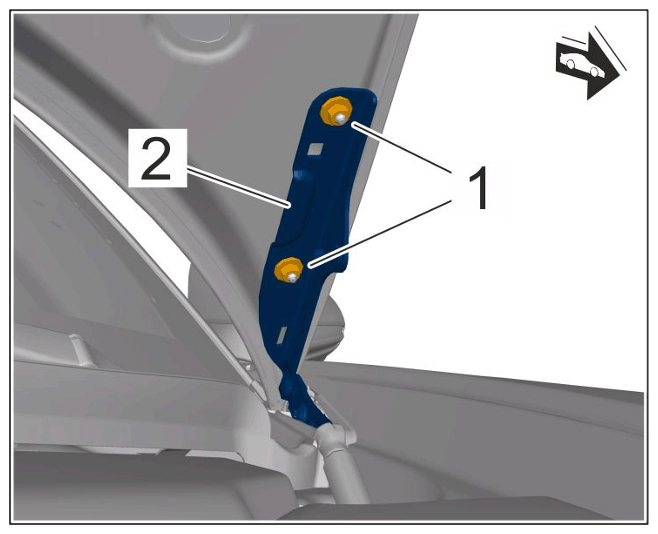

   Nuts on front lid hinge

7. Remove front lid.
