Removing Front Lock Upper Part

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

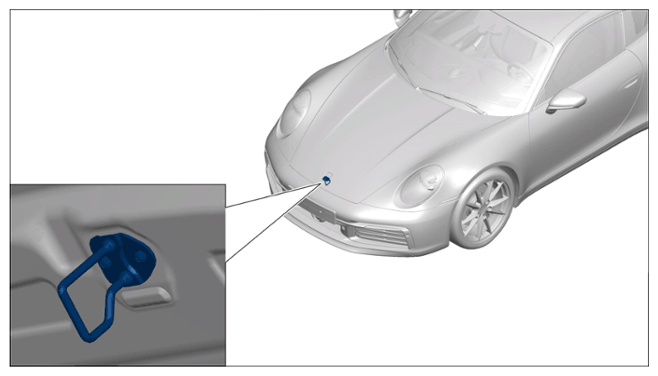

Installation position

Information

New screws must be used following removal.

1. Unscrew screws -1-  and remove upper part of front lock -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

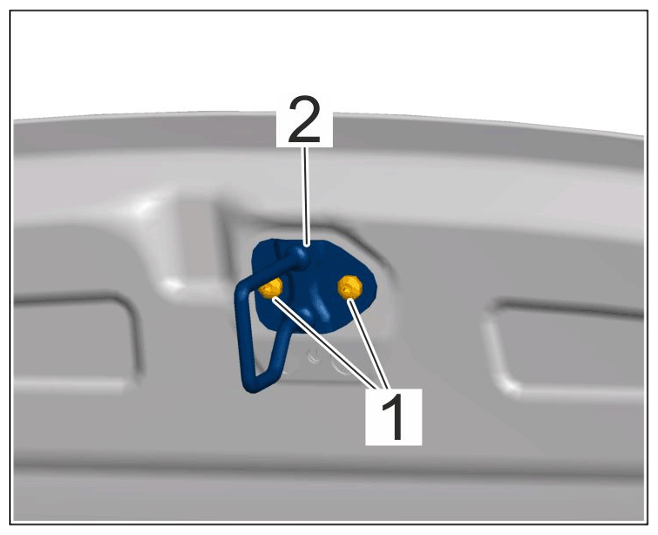

   Screws on upper part of front lock
