Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Fastening nuts for lower part of front lock Item 1 Tightening torque 8 Nm (6 ftlb.)

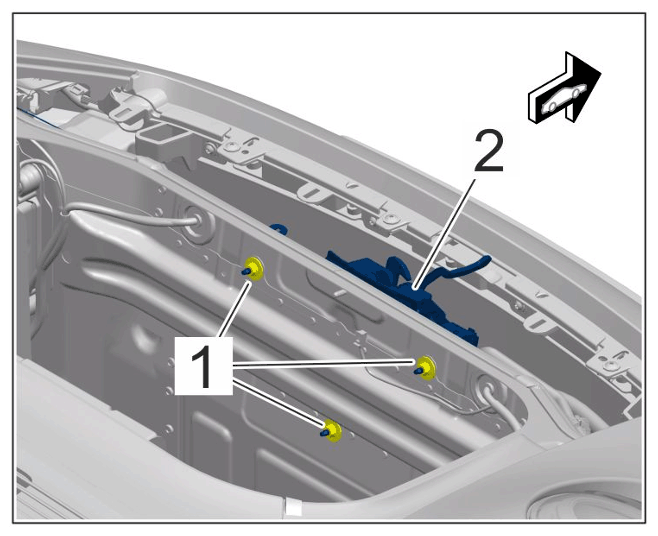

G15532833Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening nuts on lower part of lock
