Removing Light-Emitting Diode For Alarm System

1. Remove inner mirror attachment point finisher.

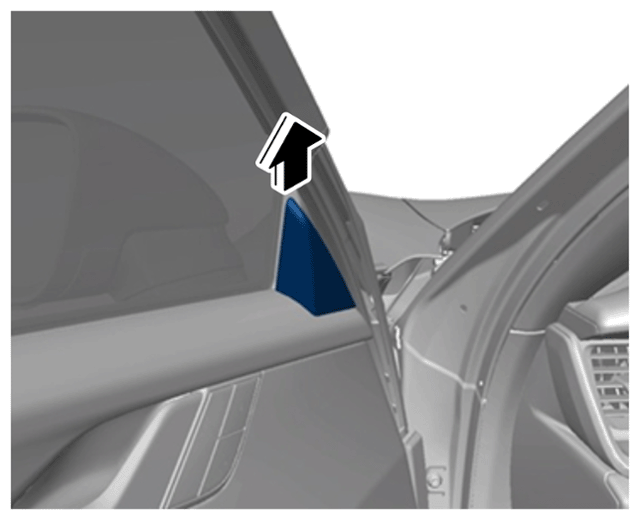

   1. 1.1 Unclip inner mirror attachment point finisher at the bottom.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Unclipping inner mirror attachment point finisher

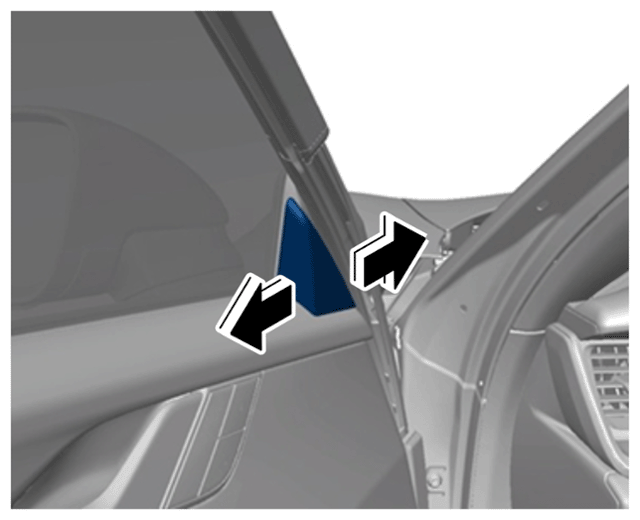

   2. 1.2 Guide inner mirror attachment point finisher up and out.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Guiding out inner mirror attachment point finisher

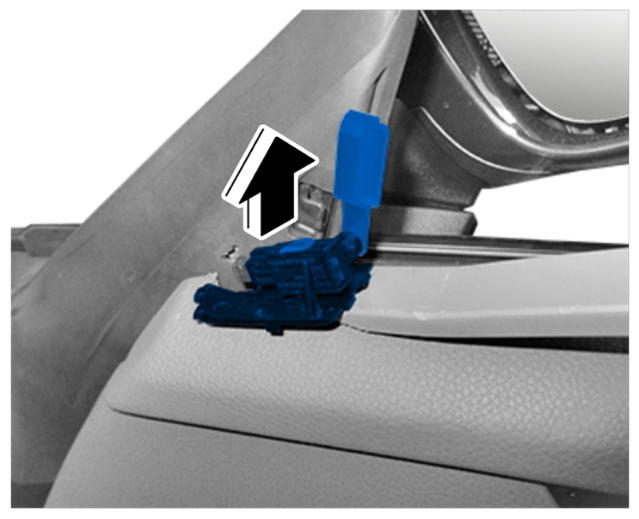

2. Unclip holder with light-emitting diode for alarm system using a suitable tool.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Holder with light-emitting diode for alarm system

3. Disconnect light-emitting diode for alarm system.
   1. 3.1 Remove light-emitting diode for alarm system until the electric plug connection is accessible.
   2. 3.2 Release and pull off electric plug connection.

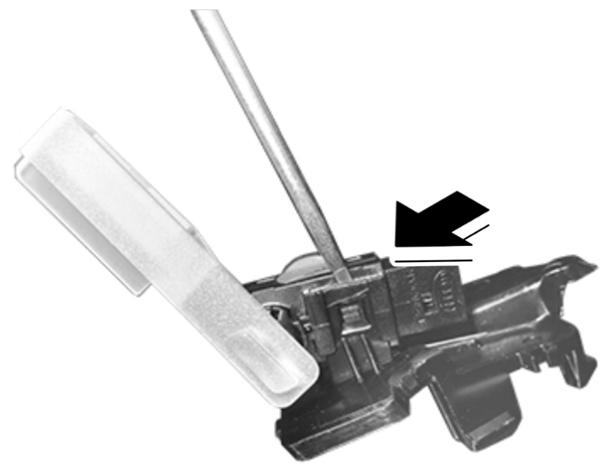

4. Unclip light-emitting diode for alarm system from holder.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping light-emitting diode for alarm system
