Installing Light-Emitting Diode For Alarm System

  1. Clip light-emitting diode for alarm system into holder.
  2. Clip holder for light-emitting diode for alarm system into the inner mirror attachment point finisher.
  3. Plug in electric plug connection.

    Electric plug connection must engage securely.

    Check cable routing.

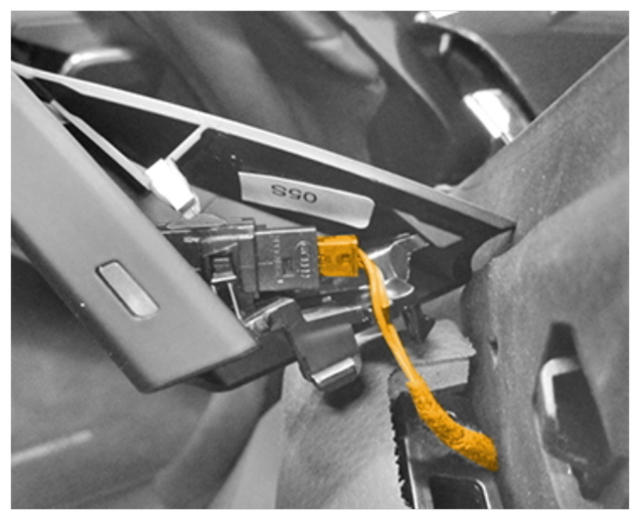

    G15535469Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cable routing

  4. Clip in mirror attachment point finisher on the door panel.

    Check guide for mirror attachment point finisher.

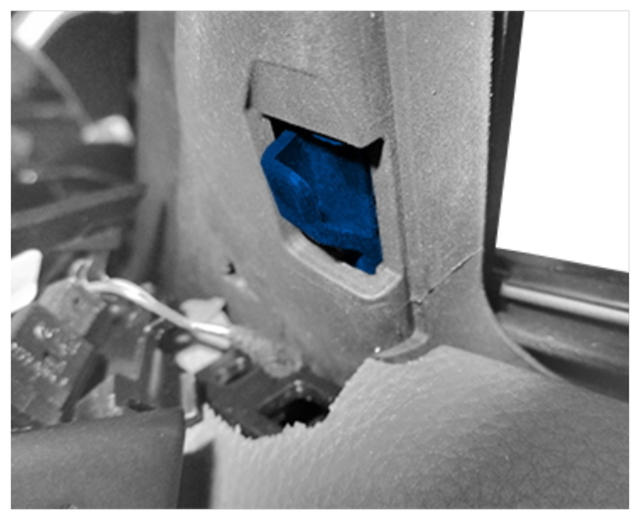

    G15535470Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Guide for mirror attachment point finisher
