Removing Door Warning Light

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

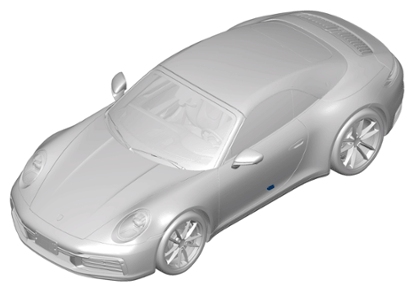

Installation position

1. Unclip door warning light using a suitable tool and pull it down and out until the electric plug connection is accessible.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

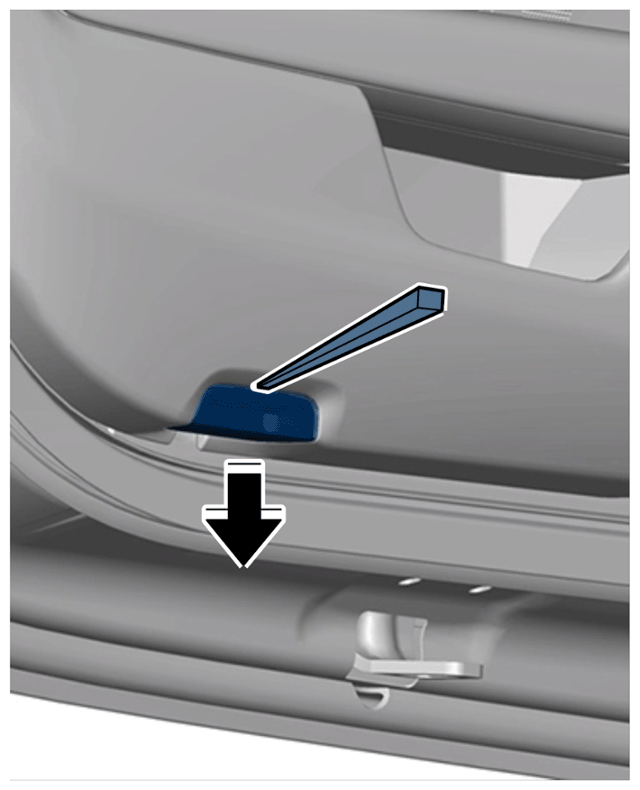

   Unclipping door warning light

2. Remove electric door warning light.
   1. 2.1 Release and unplug electric plug connection -1-  .
   2. 2.2 Remove door warning light -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

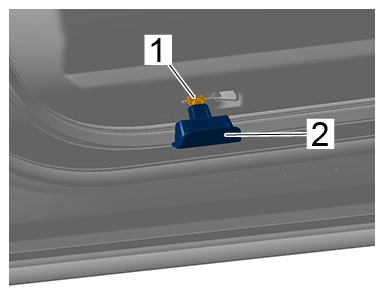

   Electric plug connection for door warning light
