57 Front Door Central Locking -- 992 - 911 CARRERA (992)
>>
5726 Lock Peg
>>
WM, 572619 Removing And Installing Striker Pin
>>
Technical Values
Technical Values
Location
Description
Type
Basic value
Tolerance 1
Tolerance 2
Lock peg
Item 1
Tightening torque
20 (19 ftlb) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

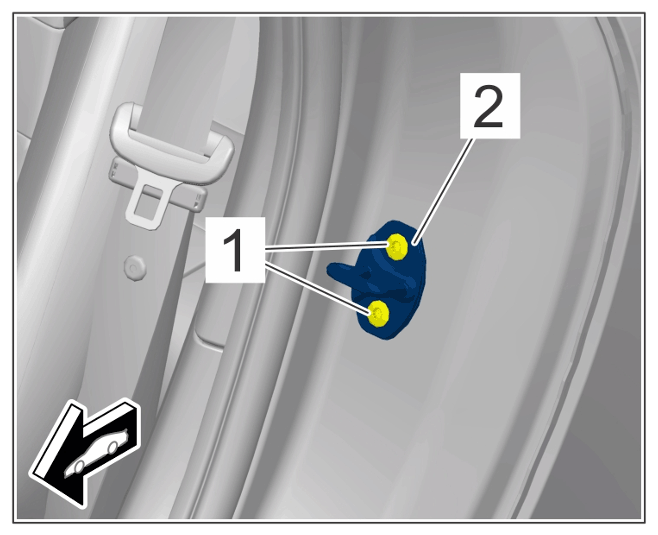

Lock peg (striker pin)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
