Installing Striker Pin

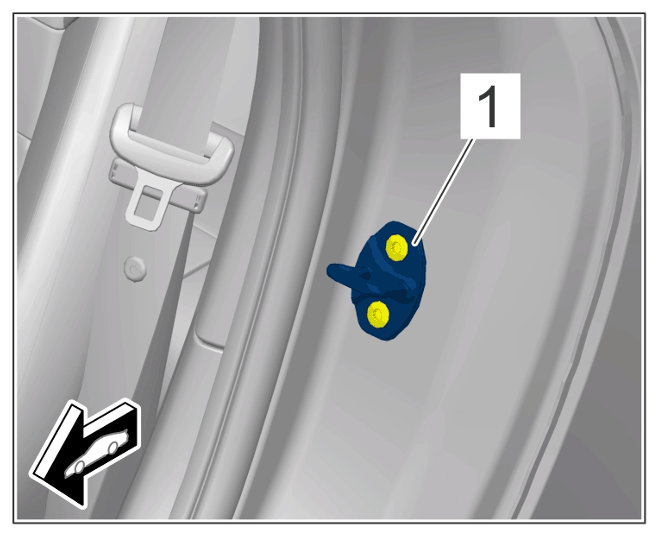

  1. Position lock peg (striker pin) -1-  .
    G15532963Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Lock peg

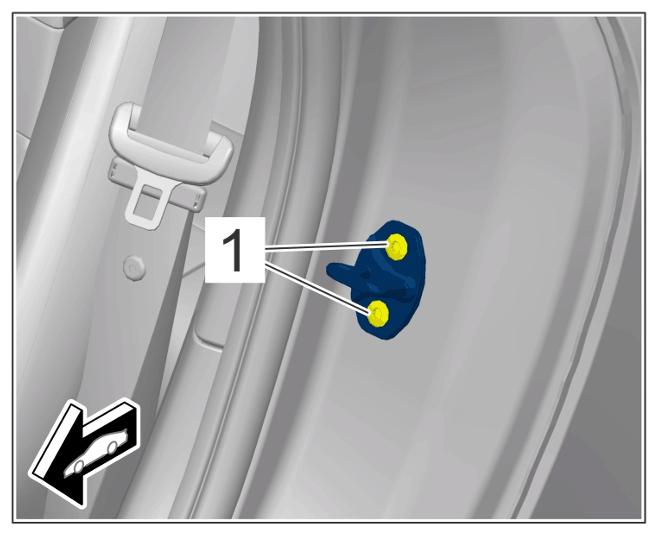

  2. Tighten screws -1-  hand-tight.
    G15532964Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

  3. Carefully close the door and check that the lock peg is positioned correctly with respect to the lock.
  4. Adjust lock peg if necessary

    572619 REMOVING AND INSTALLING LOCK PEG  - information on "Adjusting"

  5. Tighten screws to > Tightening torque 25 Nm (19 ftlb.)  .
