Adjusting Lock Peg (Striker Pin)

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

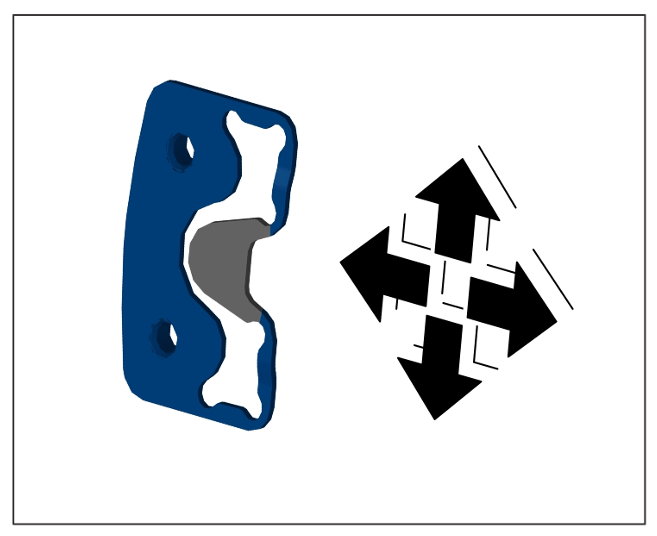

Adjusting element to, striker pin

• The lock peg can be adjusted by changing the plasticity of the adjusting element in the B-pillar.
• The setting is retained when the striker pin is removed.

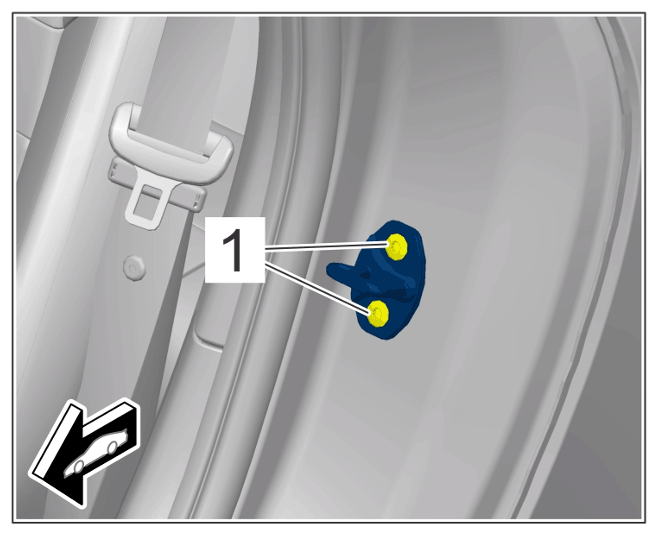

1. Loosen screws -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screws

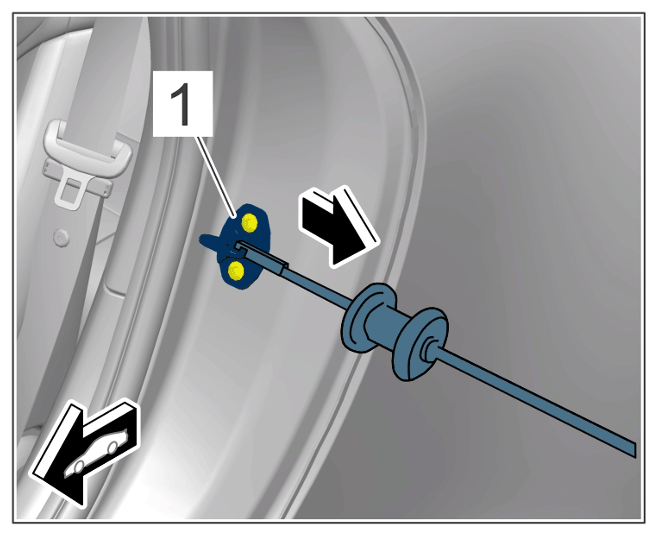

2. Adjust the lock peg -1-  outwards using > VAS 6965 - Puller set  (-arrow-  ).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Adjusting lock peg (striker pin)

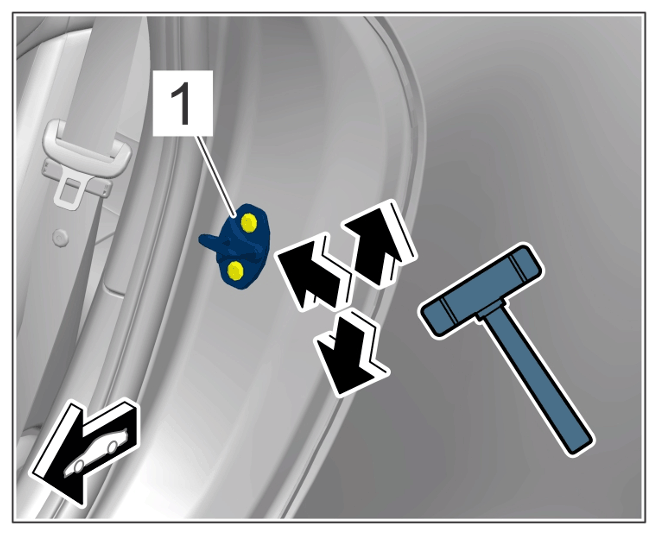

3. Adjust the lock peg -1-  inwards/up/down -Arrows-  using a plastic hammer.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Adjusting lock peg (striker pin)

4. Carefully close the door and check that the lock peg is positioned correctly with respect to the lock.
5. Tighten screws to > Tightening torque 25 Nm (19 ftlb.)  .
