Removing Lock Cylinder

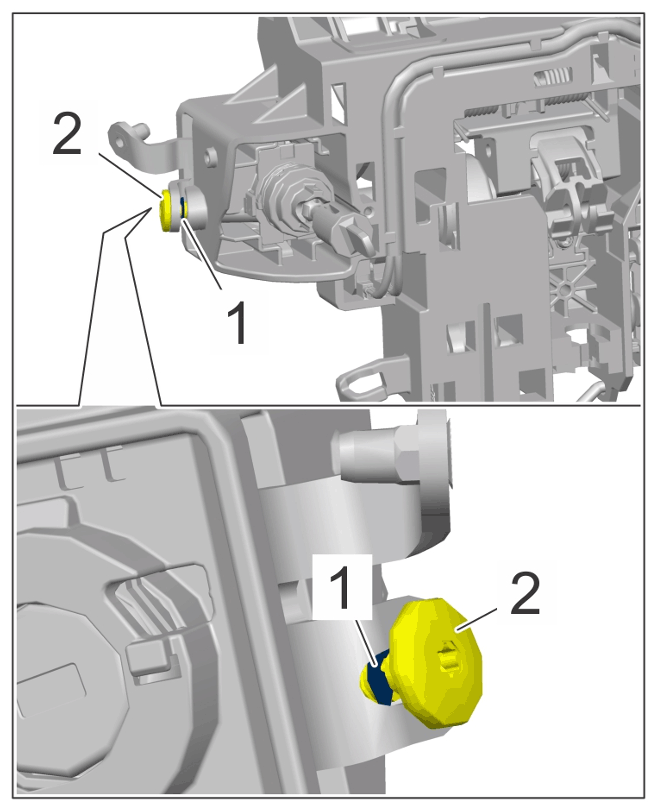

  1. Remove circlip and unscrew screw -2-  .
    G15532920Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Circlip and screw

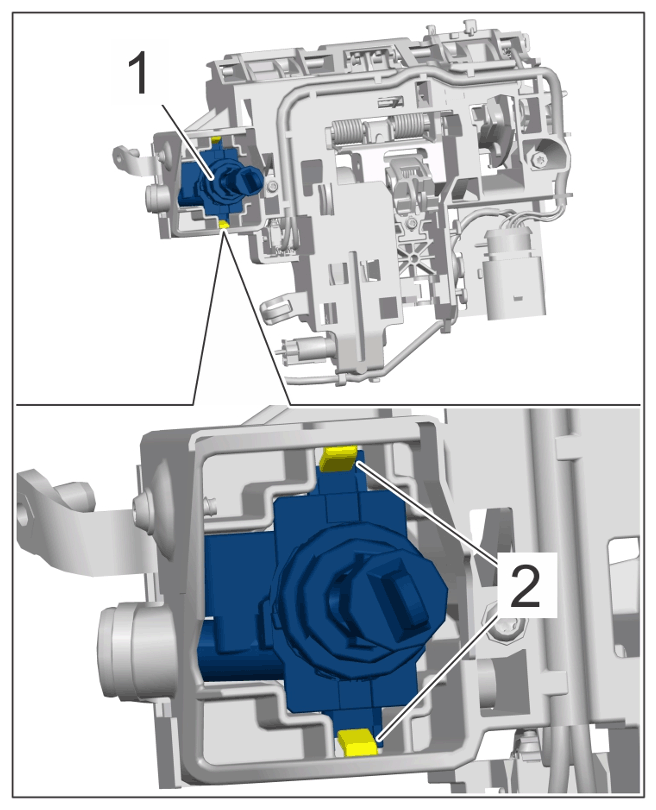

  2. Unclip lock cylinder -1-  (-2-  ).
    G15532921Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Lock cylinder

  3. Remove lock cylinder.
