Installing Lock Cylinder

  1. Installation is performed in reverse order. Pay particular attention to the following:
    1. 1.1  Only tighten screw -2-  after installing the inner door handle.

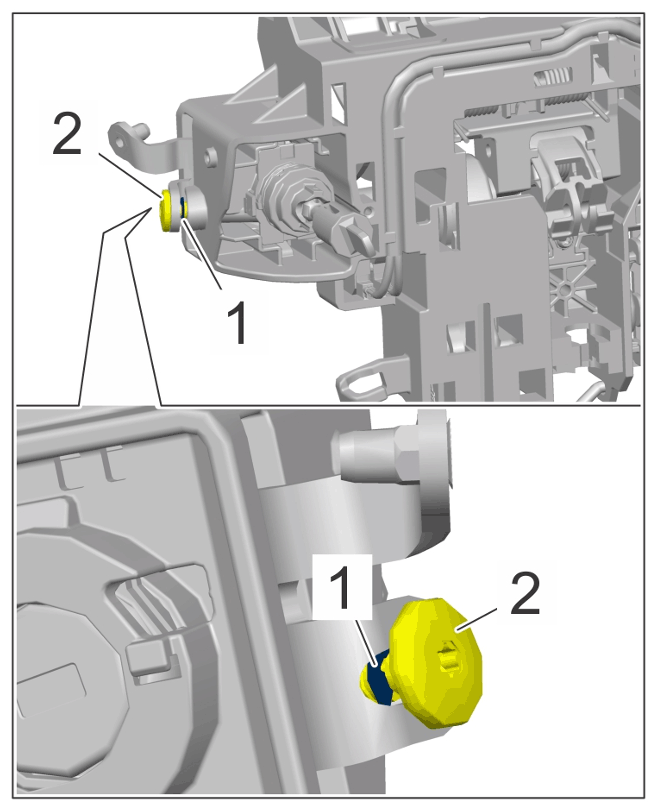

      G15532922Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Circlip and screw
