Technical Values

Location	Description	Type	Basic value	Tolerance 1

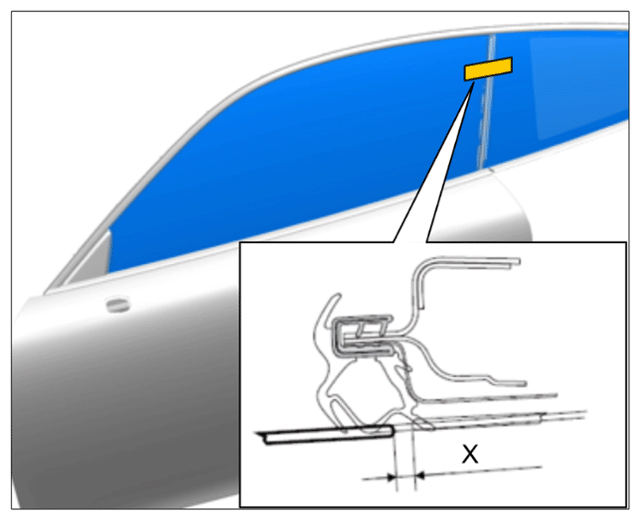

Door window with respect to side window		Gap dimension	7 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of door window

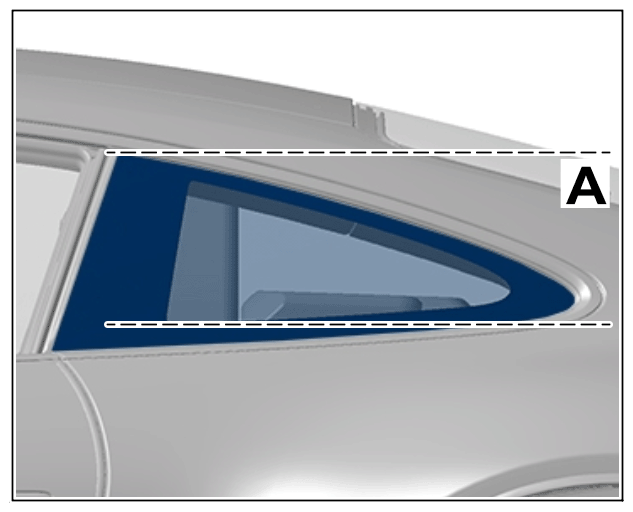

Side window offset with respect to door window		Gap dimension	0 mm	- 2 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Side window offset

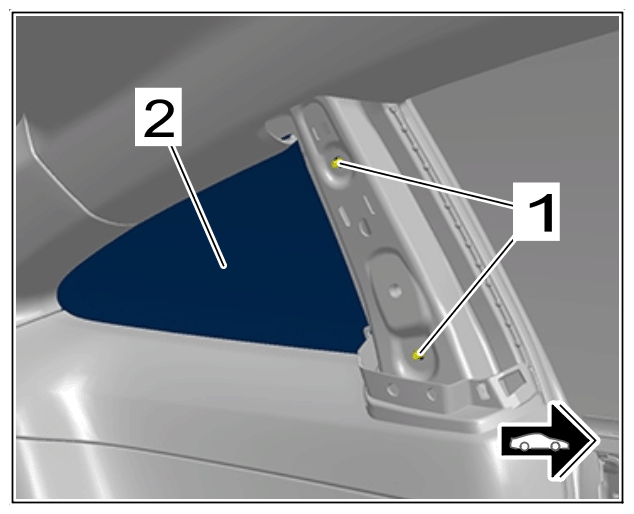

Nuts for side window	Item 1 Nuts/Item 2 Side window	Tightening torque	9.7 Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts for side window
