Adjusting Side Window

Information

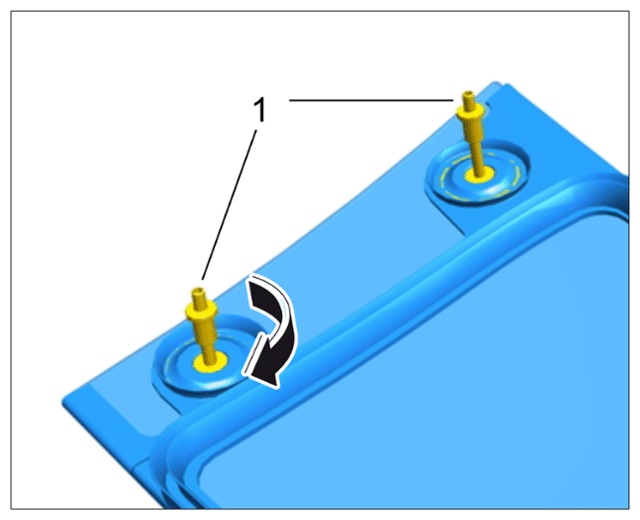

The rear side window can be adjusted in y-direction by turning the guide pins -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adjusting side window

1. Check offset -B-  of door window with respect to the rear side window and adjust it if necessary.

   Offset of door window with respect to rear side window > Gap dimension 0 mm - 2 mm  .

2. Check gap dimension -A-  of door window with respect to the rear side window and adjust it if necessary.

   Gap dimension of door window with respect to rear side window > Gap dimension 7 mm +/- 0.7 mm  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

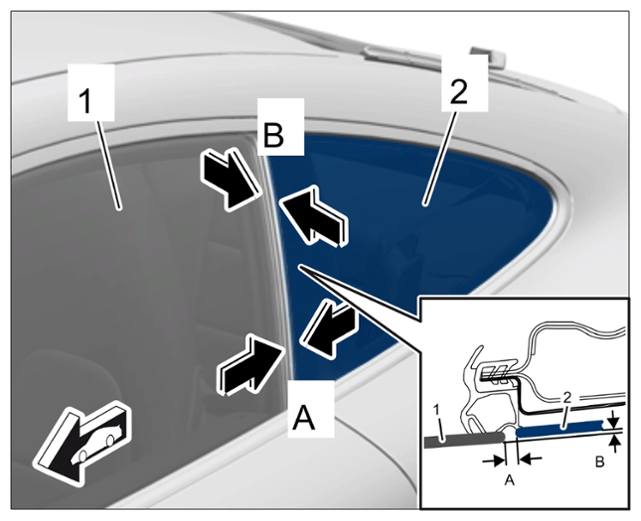

   Door window to side window
