Installing Side Window

  1. Prepare side window for installation.

    Only for equipment variant lightweight glazing

    1. 1.1  Remove positioning pins.

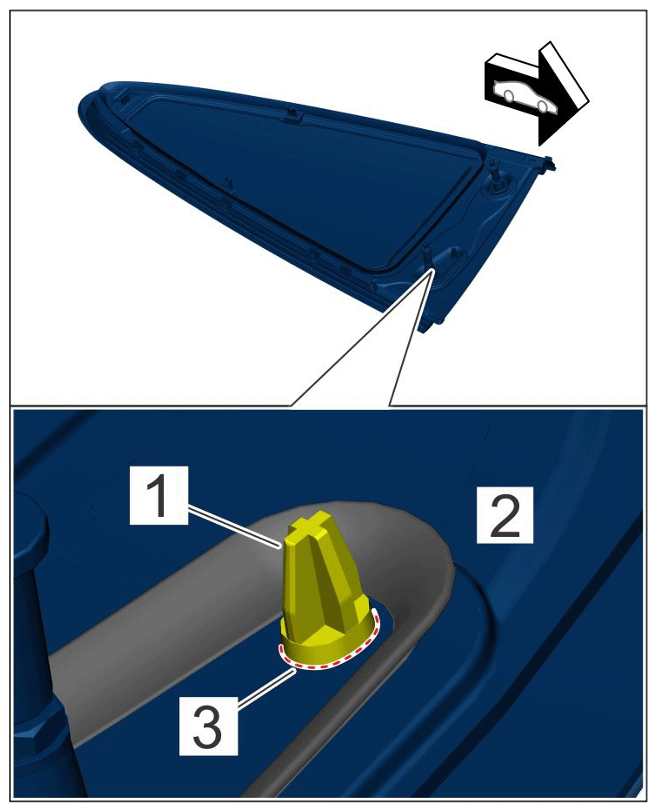

      G15533324Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Positioning pins

      1. 1.1.1  Cut off the positioning pin on -2-  the side window pane -1-  using side cutters -3-  .
  2. Installation is performed in reverse order. Pay particular attention to the following:
    1. 2.1  Tighten nuts for rear side window to > Tightening torque 9.7 Nm  .
