Home >> Porsche >> 2021 >> 911 Targa 4 >> Repair and Diagnosis >> Accessories & Equipment >> Window Motors & Regulators >> 64 Glazing, Window Operation -- 992 - 911 CARRERA (992) >> WM, 645219 Removing And Installing Front Power Windows Mechanism >> Technical Values

Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2

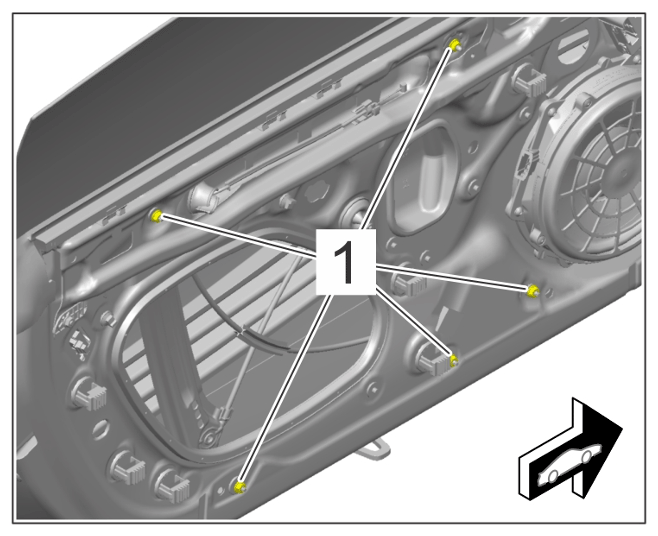

Front power windows mechanism to basic door frame Item 1 Tightening torque 9.7 Nm (7.2 ftlb.)
G15533292Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts
