Removing Front Power Windows Mechanism

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

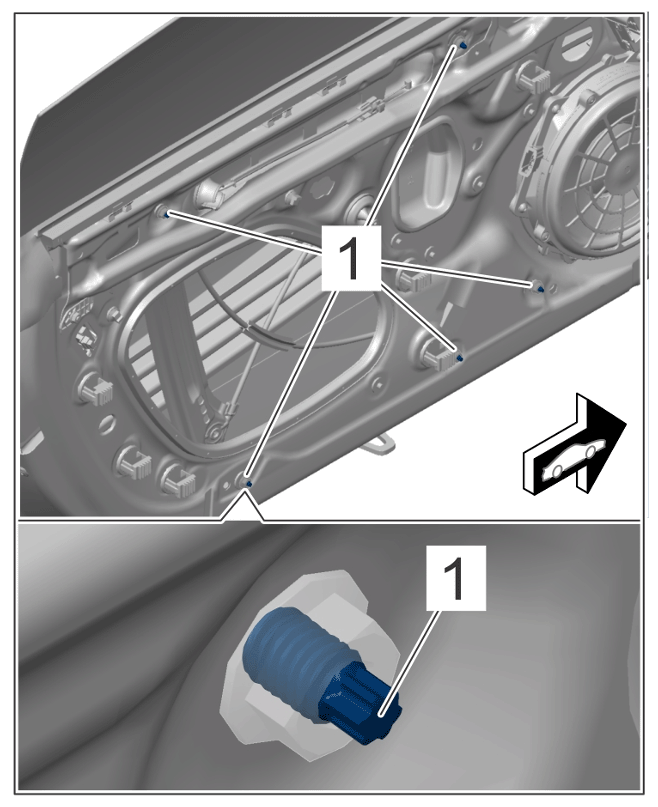

Adjusting screws for power windows mechanism

• Do not turn adjusting screws -1- during the fitting procedure.
• The adjusting screws -1- on the power windows spare part are preset.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

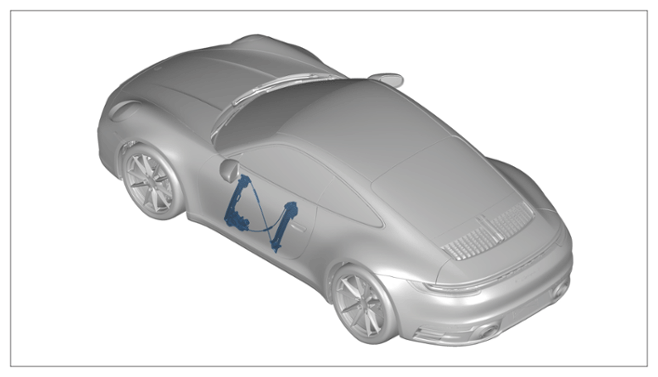

Installation position

1. Unclip cover on power windows mechanism -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

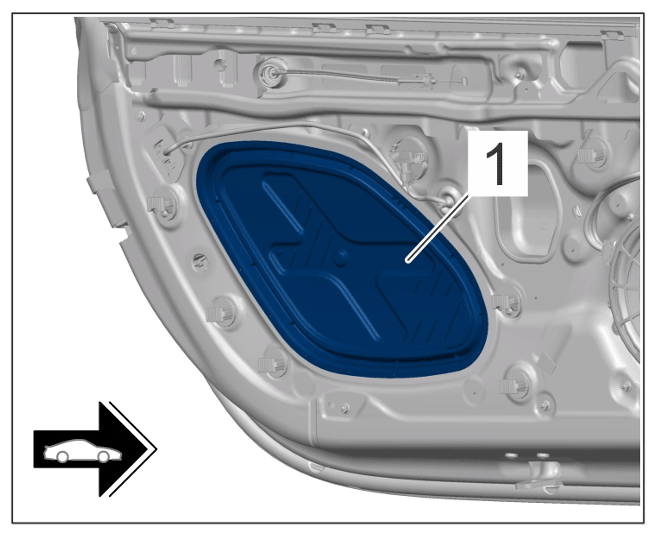

   Cover for power windows mechanism

   Information

   The end positions of the power windows are deleted from the control unit when the electric connectors are disconnected and connected.

2. Release electric plug connection -1-  and disconnect it from front power windows mechanism -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

3. Unscrew nuts.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

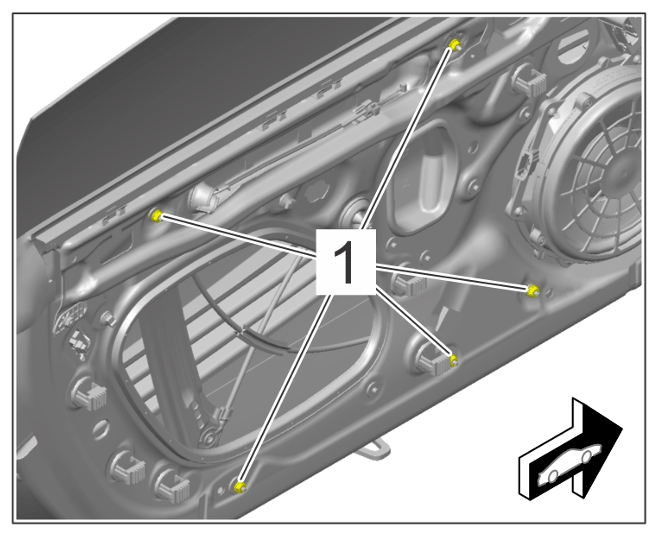

   Nuts

4. Fold up front power windows mechanism and remove it through the assembly opening.
