Installing Front Power Windows Mechanism

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

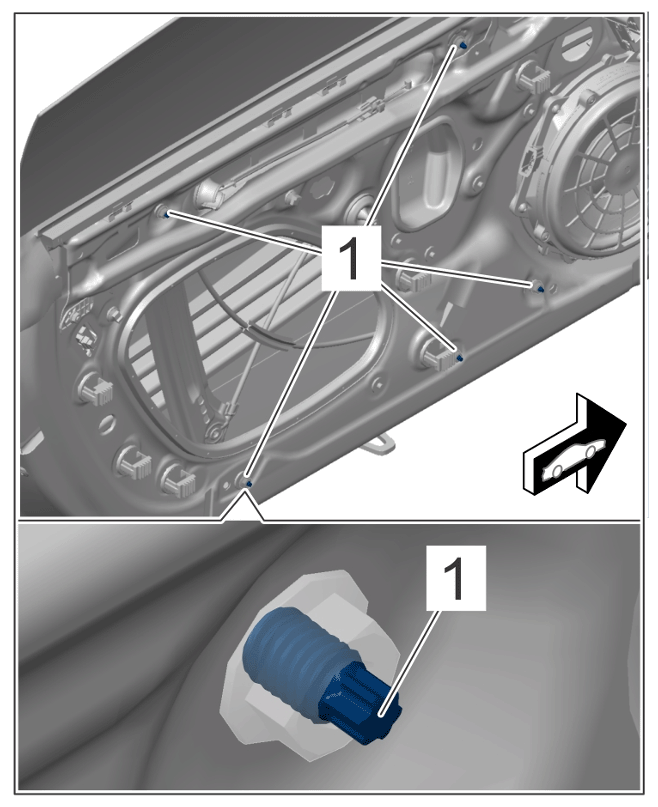

Adjusting screws for power windows mechanism

• Do not turn adjusting screws -1- during the fitting procedure.
• The adjusting screws -1- on the power windows spare part are preset.

1. Insert front power windows mechanism into basic door frame.

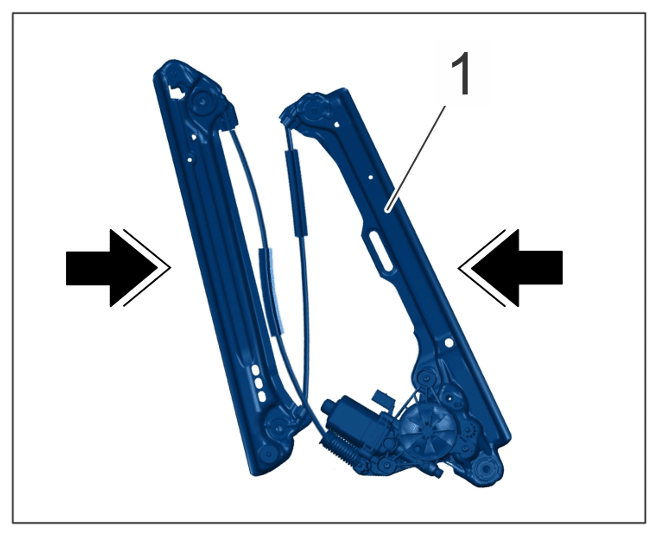

   1. 1.1  Fold up front power windows mechanism -1-  . -arrow-

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Front power windows

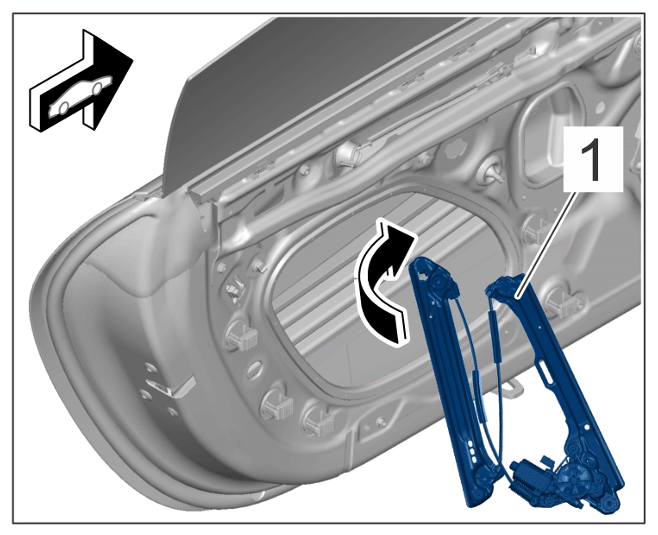

   2. 1.2  Insert front power windows mechanism -1-  through the assembly opening into the basic door frame, -arrow-

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Front power windows

   3. 1.3  Position front power windows mechanism.

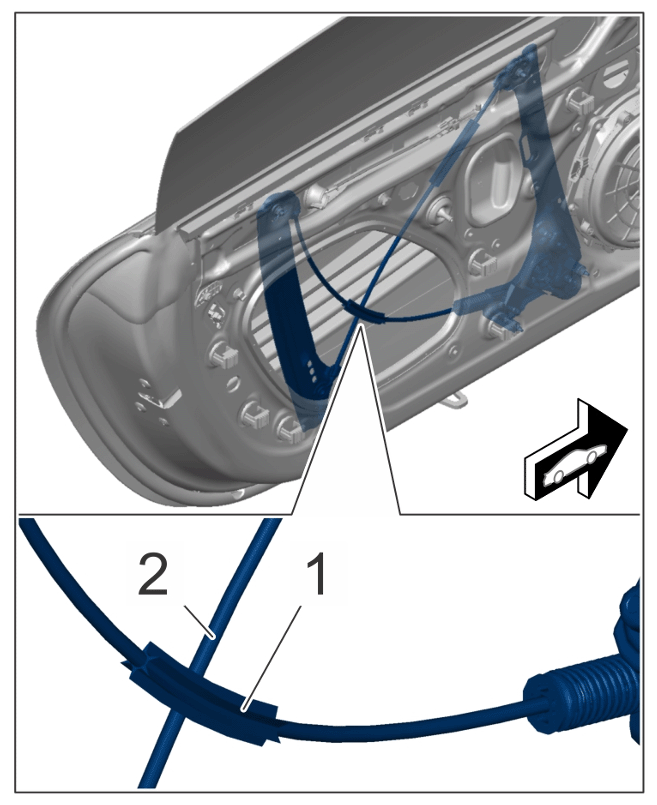

   4. 1.4  Make sure that the cables are arranged in the position shown. The cable guide with protection -1-  must be positioned before the cable guide without protection -2-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Cable guide routing

2. Fold up front power windows mechanism and insert it through the assembly opening into the basic door frame.
3. Tighten nuts.

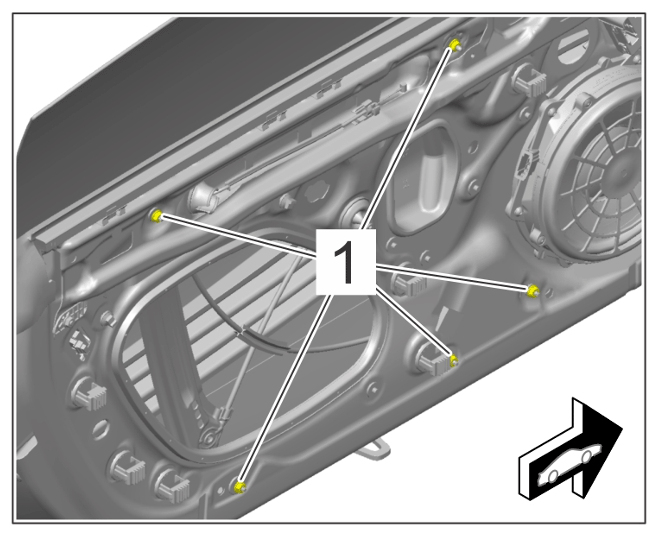

4. Tighten nuts -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Nuts

   1. 4.1  Tighten nuts -1-  hand-tight.
   2. 4.2  Tighten nuts to > Tightening torque 9.7 (7.2 ftlb.) Nm  .
