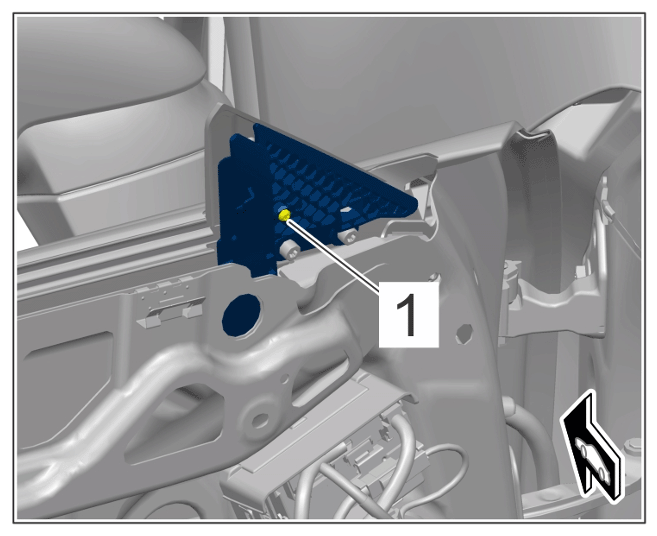

| Screw |
Item 1 |
Tightening torque |
1.4 Nm (1 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw |
|
|
|
|
|

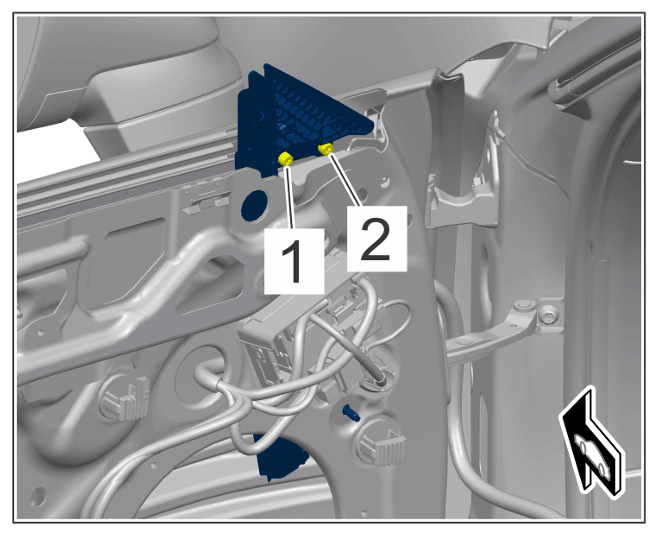

| Screws |
Item 1 and 2 |
Tightening torque |
9.7 Nm (7.2 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws |
|
|
|
|
|

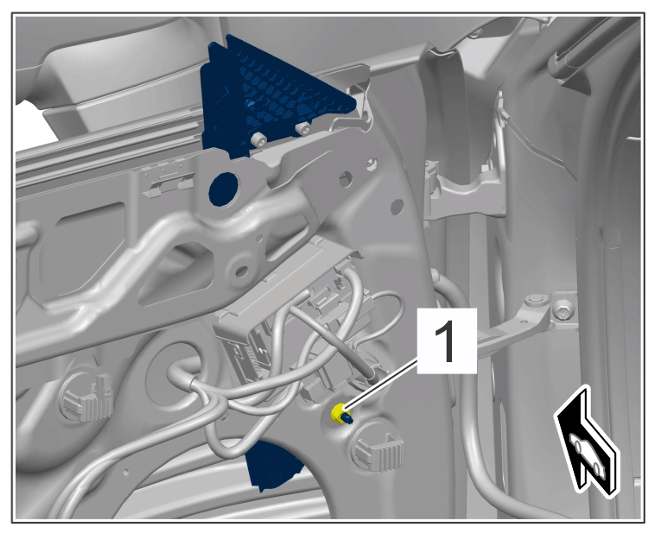

| Nut |
Item 1 |
Tightening torque |
9.7 Nm (7.2 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Nut |
|
|
|
|
|
