Removing Front Window Guide

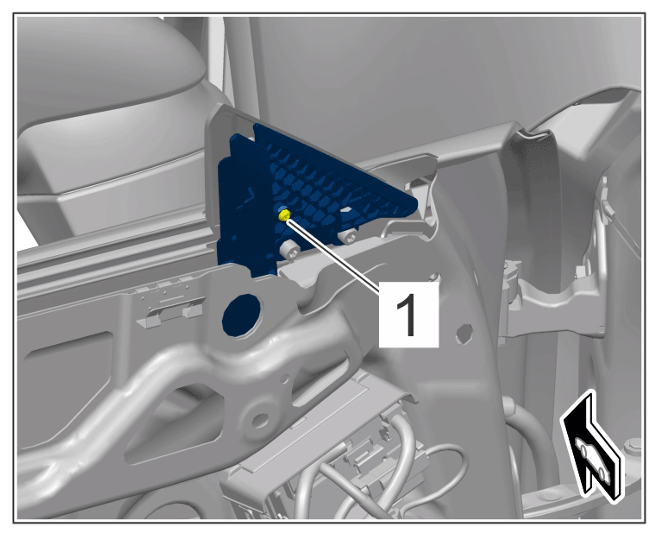

  1. Unscrew screw -1-  .
    G15533284Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screw

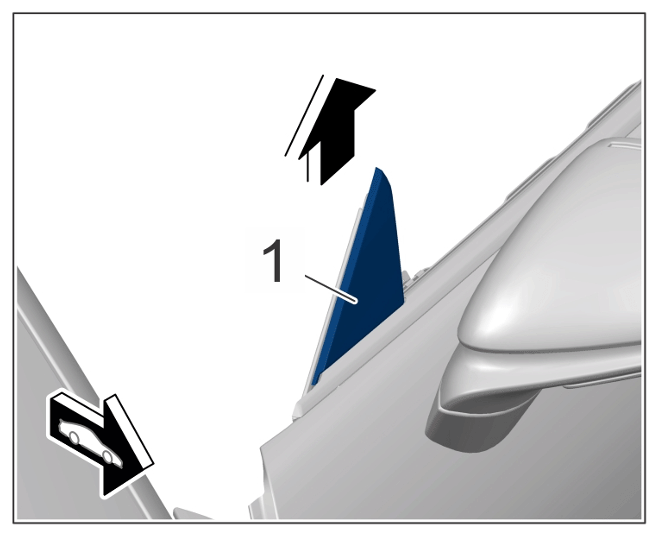

  2. Remove window guide cover -1-  at the front by pulling it upwards -arrow-  .
    G15533285Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front window guide cover

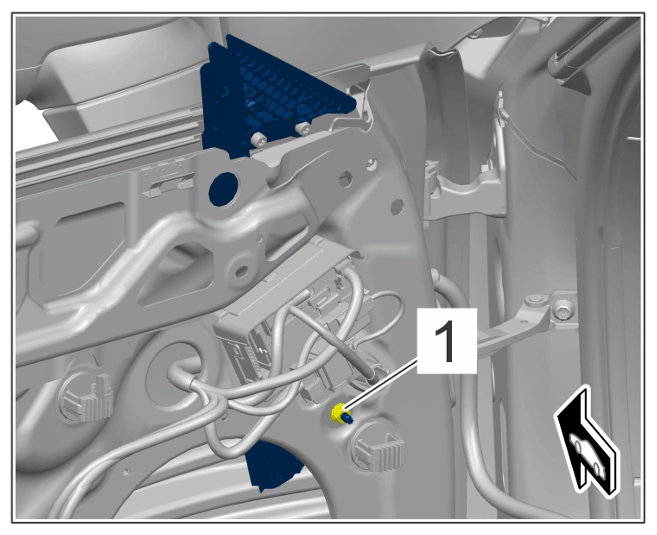

  3. Unscrew nut -1-  .
    G15533286Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Nut

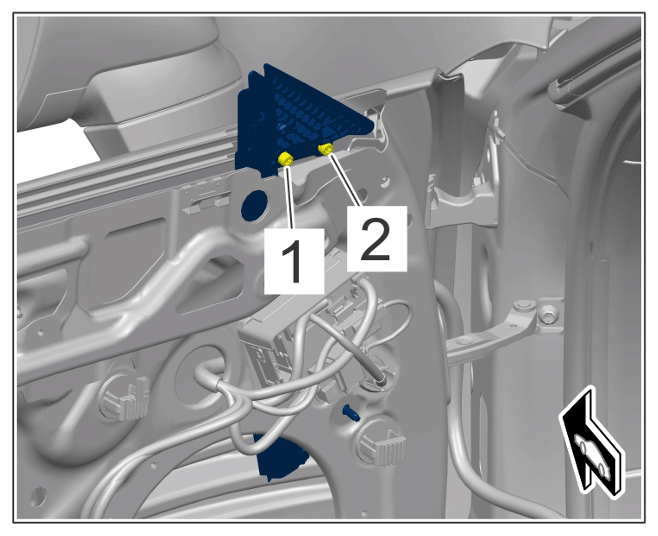

  4. Unscrew and remove screws -1-  and -2-  .
    G15533287Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

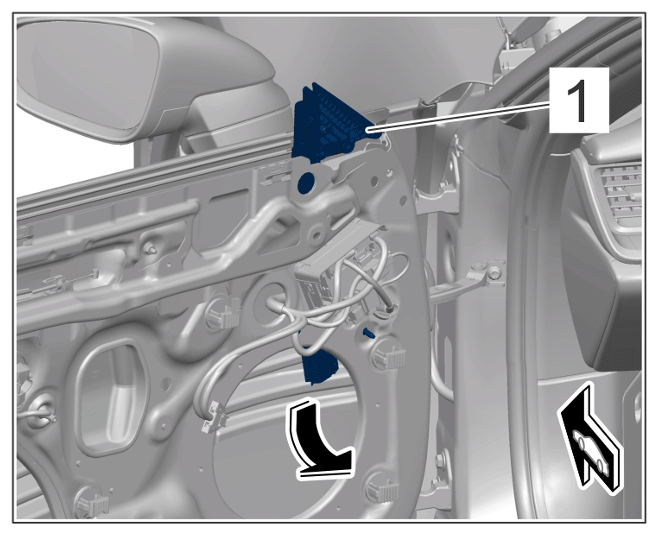

  5. Guide front window guide -1-  inwards through the opening for the loudspeaker -arrow-  and remove it.
    G15533288Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front window guide
