Installing Front Window Guide

Information

During installation, make sure to route the rear-view mirror wire harness in front of  the window guide (towards the outer door panel).

1. Installation is performed in reverse order; tighten screws in the following sequence:

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

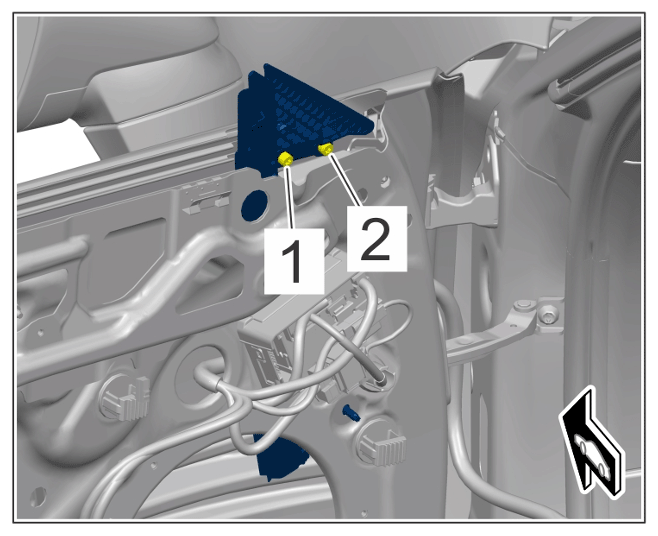

   Screws

   1. 1.1  Tighten screw -1-  to > Tightening torque 9.7  (7.2 ftlb.) Nm  .
   2. 1.2  Tighten screw -2-  to > Tightening torque 9.7 Nm (7.2 ftlb.)  .
2. Tighten nut to > Tightening torque 9.7 ( 7.2 ftlb.) Nm
3. Tighten screw to > Tightening torque 1.4 Nm (1 ftlb.)  .
