Technical Values

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

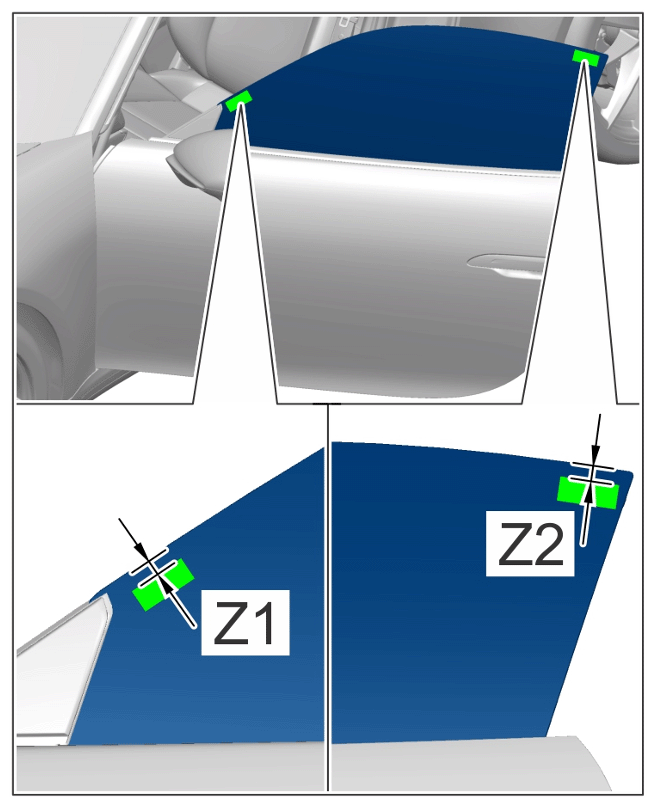

Marking on door window	Z1 (Coupe)	Length	3.5 mm	+ 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Marking
Marking on door window	Z2 (Coupe)	Length	5 mm	+ 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Marking
Marking on door window	Z1 (Cabriolet)	Length	3.5 mm	+ 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Marking
Marking on door window	Z2 (Cabriolet)	Length	7 mm	+ 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Marking

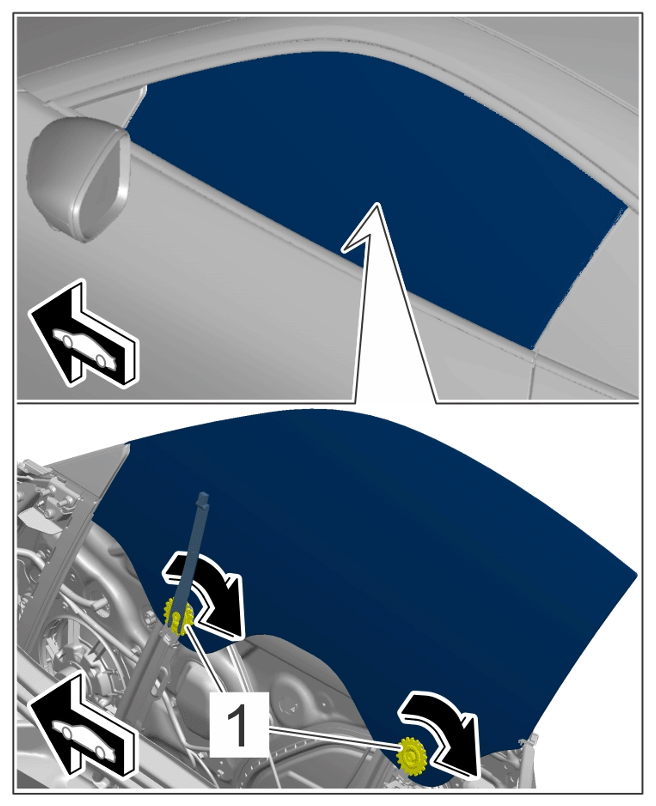

Hook screw with hook wrench 9842/2	Item 1	Tightening torque	7 Nm (5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Hook screws for door window glass

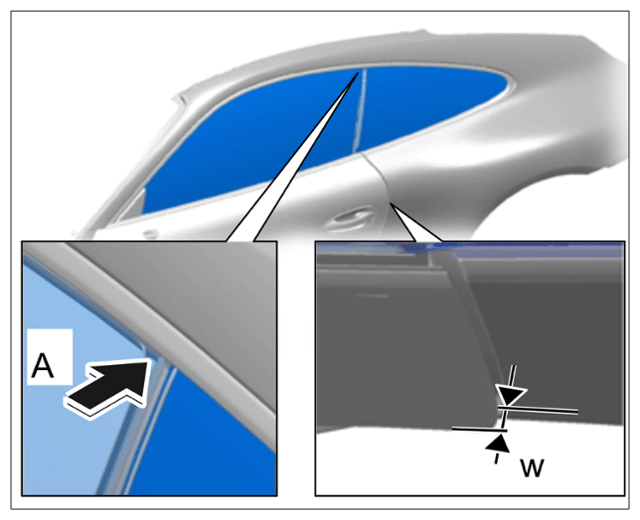

Door opening	Item W	Gap dimension	8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Door

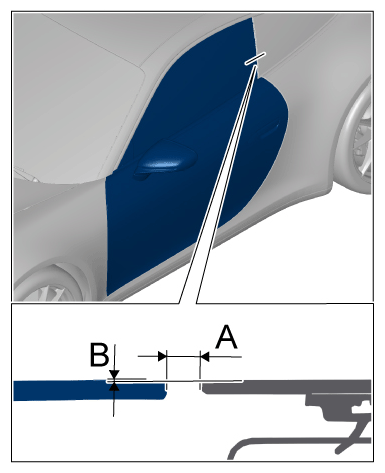

Front side window to rear side window	Dimension A (Coupe)	Gap dimension	7 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front side window to rear side window
Front side window to rear side window	Dimension B (Coupe)	Offset	0 mm	-1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front side window to rear side window

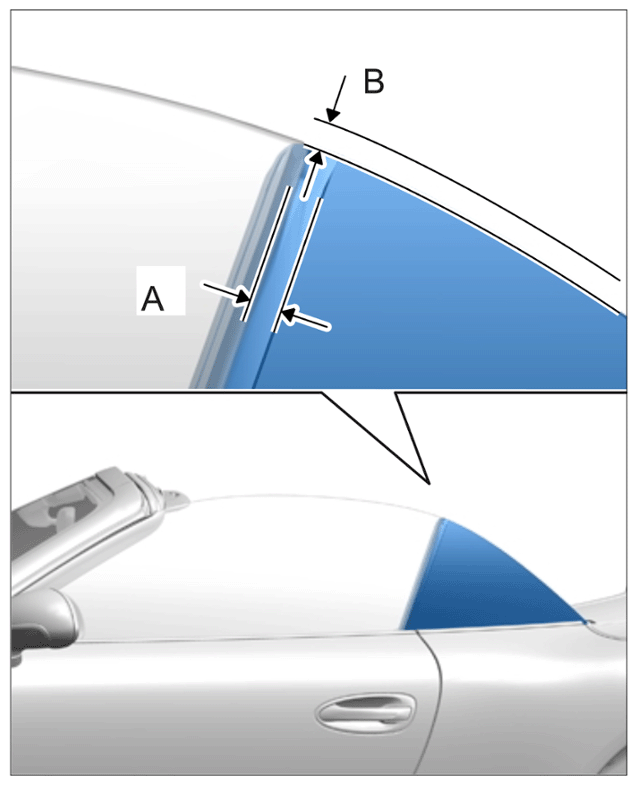

Front side window to B-pillar trim	Dimension A (Targa)	Gap dimension	12.8 mm	+ 1.3 mm	- 2 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for side window
Front side window to B-pillar trim	Dimension B (Targa)	Distance	11.0 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for side window

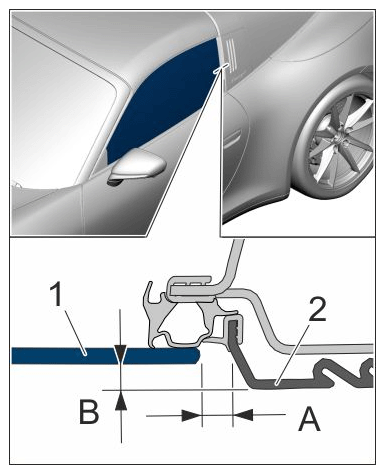

Side window gap with respect to door window	Gap parallel (A)	Gap dimension	9 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Aligning side window
Side window projection with respect to door window	Height offset (B)	Gap dimension	0 mm	+ 2 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Aligning side window

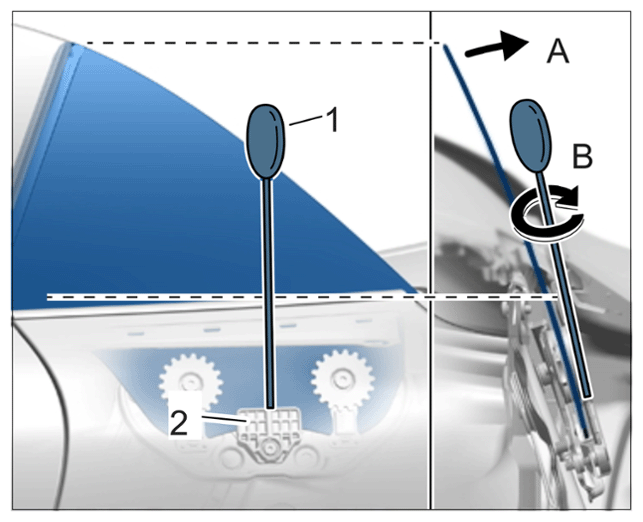

Side window offset with respect to door window	Lateral offset	Gap dimension	0 mm	- 2 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Adjusting tilt angle of rear side window
