Removing windscreen

WARNING: Vehicle windows removed and installed incorrectly

Danger of cuts
Risk of eye injuries
→ Wear personal protective gear.

→ Always shut off power supply when replacing cutting knife.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

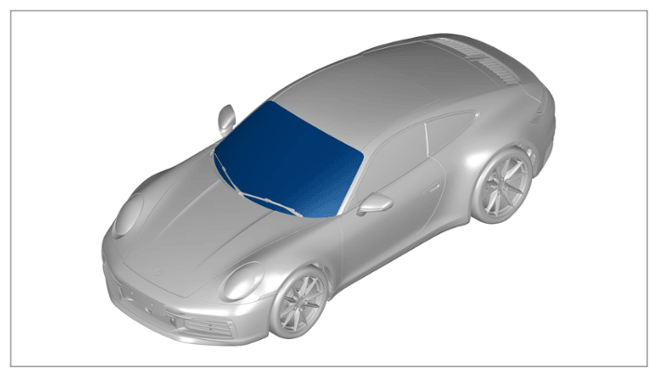

Installation position

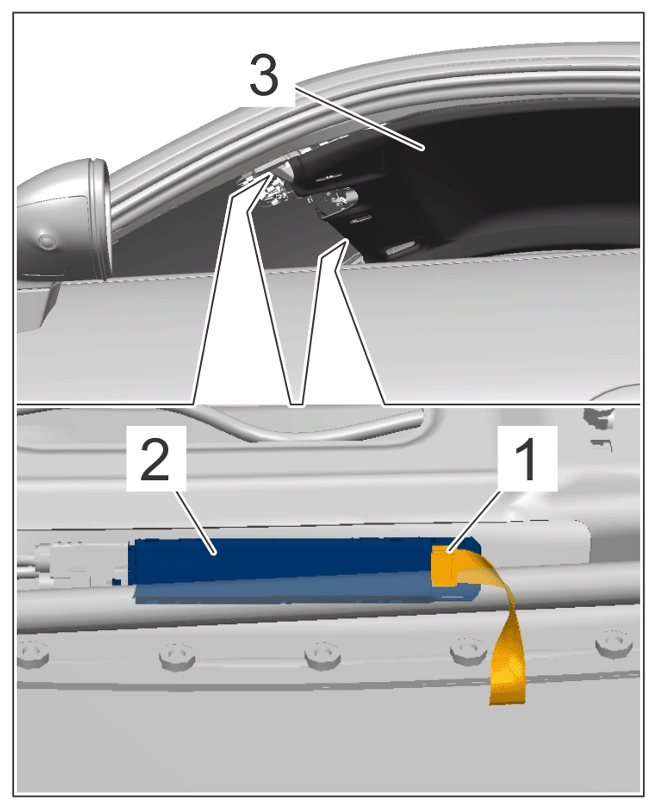

Release and disconnect electric plug connection -1- for antenna amplifier -2- at the left and right.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Antenna amplifier

Information

Too much force can damage the component.
1. 1.1 Detach headliner -3- as far as the B-pillar and pull it down carefully.
  > WM, 708419 REMOVING AND INSTALLING ROOF TRIM PANEL
2. 1.2 Release and unplug electric plug connection -1- .
  Information
  - The procedure for removing car windows is described in
  6X00IN GENERAL INFORMATION ON REMOVING CAR WINDOWS
Remove the windscreen using cutting wire or cutting cord.
Information
- To prevent damage, make sure that the vehicle identification number (VIN) is completely masked by the protective film when piercing the adhesive bead.
1. 2.1 The adhesive bead on the windscreen is pierced from the inside out in the vehicle identification number area.
