Commissioning/Activating Era GLONASS Emergency Call System

NOTE: Voltage drop
  • Irreparable damage to control unit
  • Damage to control unit
  • Fault entries in the control unit
  • Control unit programming/coding is aborted
  • Malfunctions in the control unit, even during programming/coding

    → Switch off ignition before disconnecting the control unit.

    → Make sure that the power supply is not interrupted during programming/coding.

    → Connect the battery charger with at least > current 90 A  to the vehicle battery.

Information

The instructions in the Tester  take precedence, since the description may be different with later Tester releases.

The procedure described here has been structured in general terms. Different text or additional information may appear in the Tester  .

Information

Flight mode must be deactivated in order to start/activate the ERA GLONASS emergency call system.

  1. Switch on the ignition.

    Information

    Make sure that you have sufficient mobile phone and satellite reception.

  2. Wait 10 minutes.
  3. Check whether the ERA GLONASS profile is available.
    1. 3.1 Connect the Tester to the vehicle and start it. Switch on ignition.
    2. 3.2 Place original remote control (hand-held transmitter) in emergency start tray.
      G15535224Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Emergency start tray

    3. 3.3 Select the vehicle type if required.
    4. 3.4 Select the Connect control unit  in the overview  . Press F12 to continue. The message "Create Vehicle Analysis Log (VAL)?" appears. Press F11 to continue.
    5. 3.5 Actual values/input signals  must now be selected.
    6. 3.6 Mobile communication  must be selected.
    7. 3.7 The following displays must be available:
      1. 3.7.1 eCall (Russia) ERA profile status: ERA profile availability
      2. 3.7.2 eCall (Russia) ERA profile status: ERA profile active status
    8. 3.8 If the displays are available, continue with Step 4.

      If the displays are not available, continue with Step  16.

  4. Switch off the ignition.
  5. Loosen battery ground strap.

    978509 LOOSENING AND SECURING GROUND STRAP FOR BATTERY

  6. Wait 2 minutes.
  7. Secure battery ground strap.

    978509 LOOSENING AND SECURING GROUND STRAP FOR BATTERY

  8. Switch on the ignition.
  9. The emergency call button indicator light in the roof console lights up red or green.
    G15535225Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Emergency call button

  10. Connect the Tester to the vehicle and start it. Switch on ignition.
  11. Place original remote control (hand-held transmitter) in emergency start tray.
    G15535226Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Emergency start tray

  12. Select the vehicle type if required.
  13. Select the Connect control unit  in the overview  . Press F12 to continue. The message "Create Vehicle Analysis Log (VAL)?" appears. Press F11 to continue.
  14. Maintenance/repairs  must now be selected.
  15. Read out SIM identification  must be selected. Press F12 to continue.
    1. 15.1 Perform procedure according to menu guidance.
    2. 15.2 Result: SIM identification complete  . Continue with Step  30.
    3. 15.3 Result: No ERA GLONASS profile downloaded  . Continue with Step 16.
  16. Create ticket and contact Technical Support.
  17. Park the vehicle. Make sure that the parked vehicle has sufficient mobile phone and satellite reception.
  18. Switch on the ignition in the specified time period.

    Time zone - Moscow, Russia: 3.00 p.m. to 5.00 p.m.

    1. 18.1 Connect the Tester to the vehicle and start it.
    2. 18.2 Place original remote control (hand-held transmitter) in emergency start tray.
      G15535227Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Emergency start tray

    3. 18.3 Select the vehicle type if required.
    4. 18.4 Select the Connect control unit  in the overview  . Press F12 to continue. The message "Create Vehicle Analysis Log (VAL)?" appears. Press F11 to continue.
    5. 18.5 Drive links/checks  must be selected.
    6. 18.6 Connection set-up  must be selected. Press F12 to continue.
      1. 18.6.1 Do not enter any values in the Activation time  and Activation value  fields.
      2. 18.6.2 Press F8 to start.
  19. The emergency call button indicator light in the roof console lights up red and turns green.
  20. Switch off the ignition.
  21. Loosen battery ground strap.

    978509 LOOSENING AND SECURING GROUND STRAP FOR BATTERY - article on "Loosening And Securing"

  22. Wait 2 minutes.
  23. Secure battery ground strap.

    978509 LOOSENING AND SECURING GROUND STRAP FOR BATTERY

  24. Connect the Tester to the vehicle and start it. Switch on ignition.
  25. Place original remote control (hand-held transmitter) in emergency start tray.
    G15535228Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Emergency start tray

  26. Select the vehicle type if required.
  27. Select the Connect control unit  in the overview  . Press F12 to continue. The message "Create Vehicle Analysis Log (VAL)?" appears. Press F11 to continue.
  28. Maintenance/repairs  must now be selected.
  29. Read out SIM identification  must be selected. Press F12 to continue.
    1. 29.1 Perform procedure according to menu guidance.
    2. 29.2 Result: SIM identification complete  . Continue with Step 30.
    3. 29.3 Result: No ERA GLONASS profile downloaded  . Back to Step  16.
  30. Switch off ignition, wait 5 seconds and then switch ignition back on again.
  31. Press the emergency call button in the roof console 5 times within about 20 seconds.

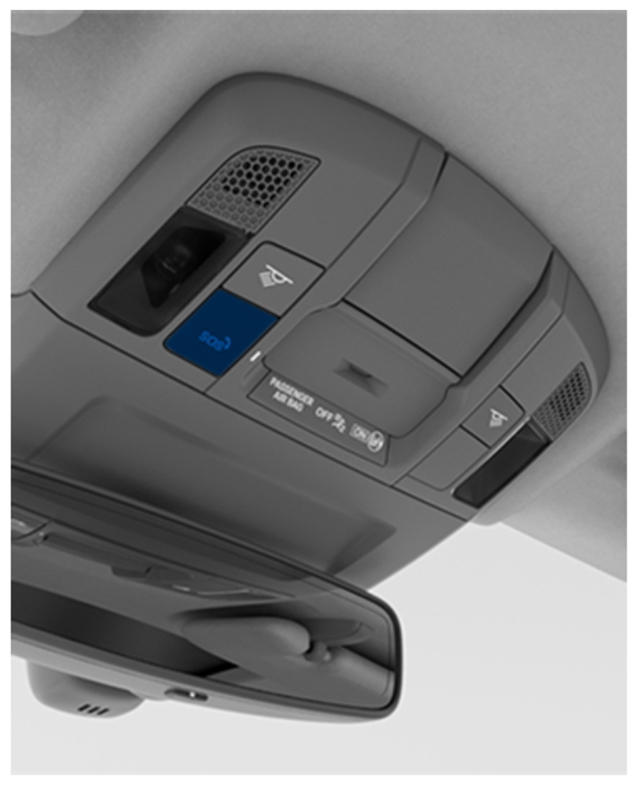

    G15535229Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Emergency call button

  32. Follow the instructions shown on the emergency call system.
    1. 32.1 Activate the emergency call system according to menu guidance.
