Removing And Installing BLUETOOTH Control Unit (Piloted Parking)

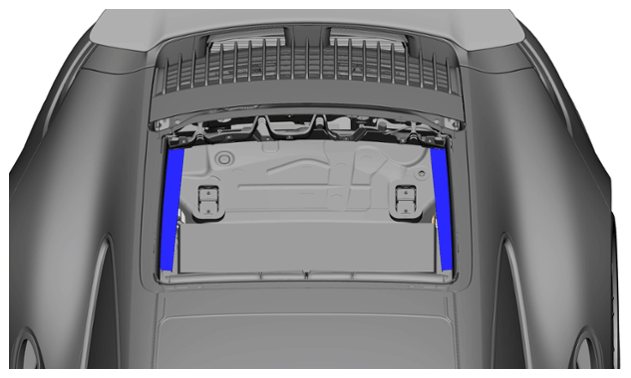

  1. Remove covers laterally.
    G15535221Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Covers at the sides

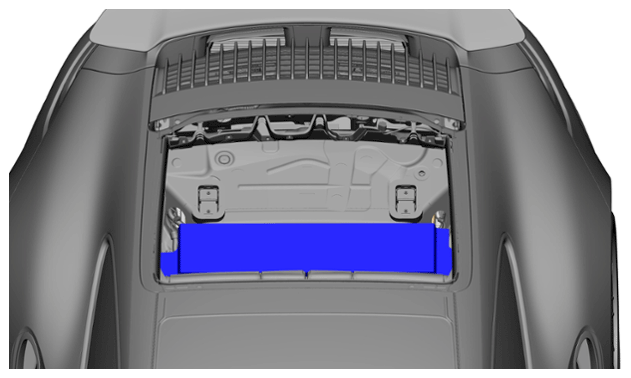

  2. Remove front cover.
    G15535222Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front cover

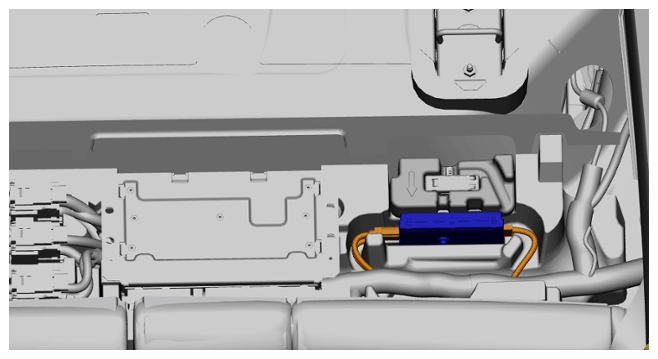

  3. Remove Bluetooth control unit from tray.
    G15535223Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bluetooth control unit

  4. Release and disconnect electric plug connection.


  1. Installation is performed in reverse order.

    Electric plug connection must engage securely.
