91 Radio, On-Board Computer Park Assist -- 992 - 911 CARRERA (992)
>>
WM, 919319 Removing And Installing USB/IPOD Control Unit
>>
Removing USB/IPOD Control Unit
Removing USB/IPOD Control Unit

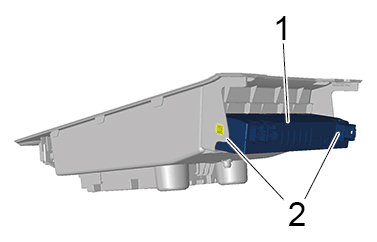

Unclip USB/IPOD control unit
-1-
at the locking lugs
-2-
and remove it from the (rear) package box.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
USB IPOD control unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
