Removing Telephone Console

  1. Unscrew fastening screw -1-  .

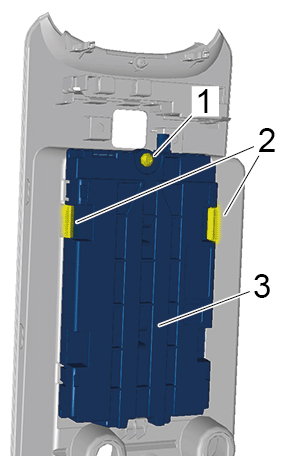

    G15535209Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Telephone console

  2. Open retaining lugs -2-  and remove telephone console -3-  from the (rear) package box.
