Home >> Porsche >> 2021 >> 911 Targa 4 >> Repair and Diagnosis >> Accessories & Equipment >> Infotainment >> 91 Radio, On-Board Computer Park Assist -- 992 - 911 CARRERA (992) >> WM, 918419 Removing And Installing Antenna Amplifier >> Technical Values

Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Fastening screw securing antenna amplifier to roof cross member Item 1 Tightening torque 2 Nm (1.5 ftlb.)

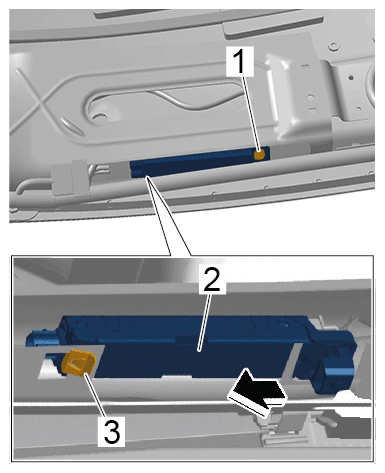

G15535195Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Antenna amplifier
