Removing Antenna Amplifier

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit
→ Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

→ Switch off electrical loads before disconnecting or removing them.

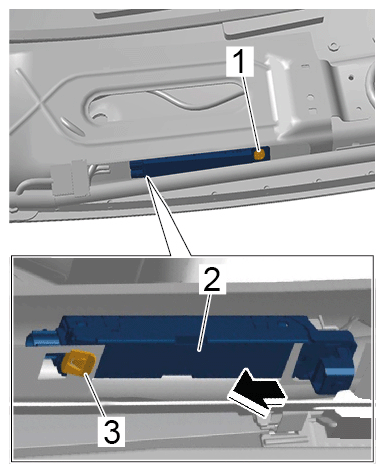

Unscrew fastening screw -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Antenna amplifier
Push antenna amplifier -2- with clip -3- out of the bracket -arrow- and loosen it until electric plug connections are accessible.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Antenna amplifier

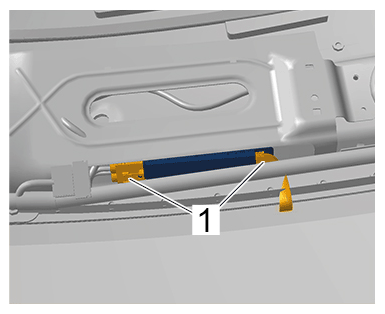

Release and unplug electric plug connections -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections
