Removing Control Unit For Lane Change Assist

Information

Lane Change Assist must be re-calibrated after carrying out the following work on the vehicle:

• When one or both Lane Change Assist control units are replaced.
• When the installation position of one or both Lane Change Assist control units is changed.
• When body repairs are carried out on the rear of the vehicle.
• When the rear bumper is removed or moved out of position.

1. Switch off ignition and keep transmitter key outside of the transmission range (at least 2 m).

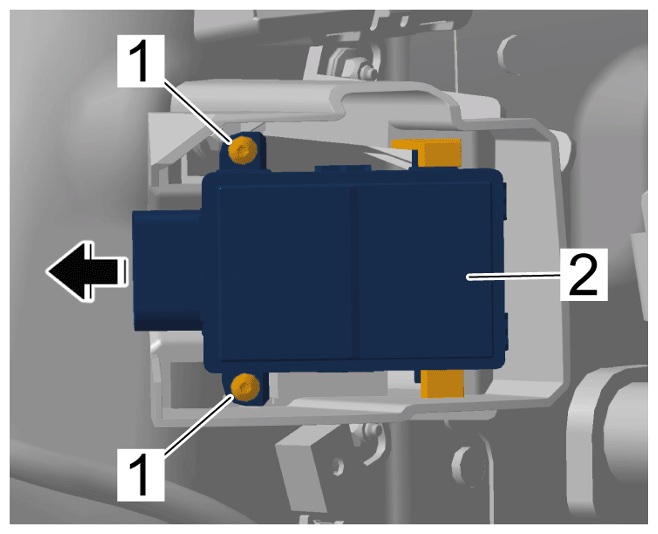

2. Unscrew fastening screws -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening screws

3. Unclip control unit for Lane Change Assist -2-  from the bracket.
4. Disconnect electric plug connection.
